ACTi - PMAX-1101-001R0 - Bracket for Outdoor Box Cameras

Product Overview

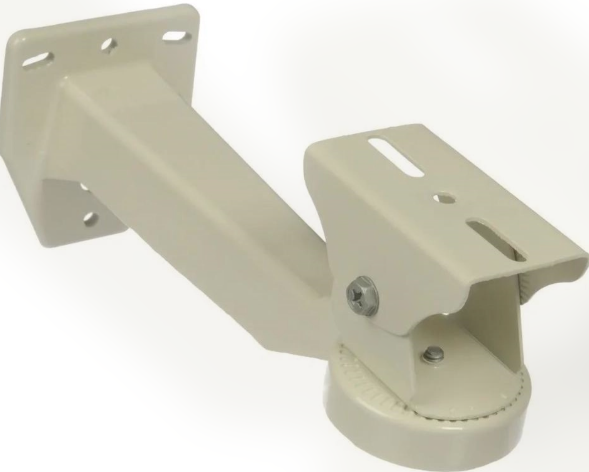

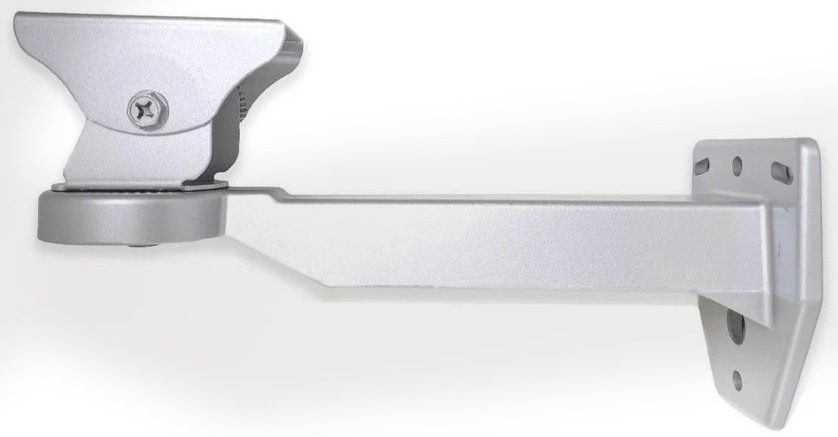

The ACTi PMAX-1101 is an aluminum camera mounting bracket designed for outdoor box camera installations. It supports KCM-5211E, KCM-5511, KCM-5611, and box cameras used with outdoor housing.

Key Configuration

Product type: Camera Mount; description: Bracket for Outdoor Box Cameras, including KCM-5211E, KCM-5511, KCM-5611, and box cameras with outdoor housing; part number: PMAX-1101-001R0; weight: 432 g (0.952 lb); dimensions: 84 mm x 99 mm x 270 mm (3.31" x 3.9" x 10.63"); color: Gray; material: Aluminum.

Key Features

• Aluminum bracket for outdoor box camera mounting
• Supports KCM-5211E, KCM-5511, and KCM-5611
• Compatible with box cameras using outdoor housing
• Gray finish
• Part number PMAX-1101-001R0

Technical Context

The PMAX-1101 provides a dedicated mounting interface for compatible outdoor box cameras and housed box camera assemblies. Its 84 mm x 99 mm x 270 mm dimensions and 432 g weight define the physical mounting profile for planning camera placement.

Installation Notes

This bracket is intended for ACTi outdoor box camera installations, including supported KCM models and box cameras installed with outdoor housing. The aluminum body provides a rigid mounting structure for surveillance applications.
