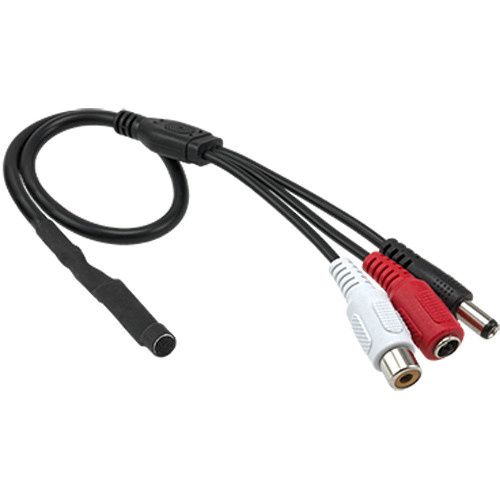

ACTI - PMIC-0100 - Active Microphone Omnidirectional for all Cameras with Line-in Audio
Part number:
PMIC-0100
Price:
Active Microphone Omnidirectional for all Cameras with Line-in Audio
| Device | |
| Product Type | Microphone |
| Description | Active Microphone Omnidirectional for all Cameras with Line-in Audio |
| Audio | |
| Microphone Type | Active |
| Transducer Type | Condenser |
| Frequency Response | 300 - 5500 Hz |
| Impedance | 600 ohms |
| Audio Output Signal | 2Vpp/-25dB |
| Current Consumption | Max. 10mA |
| Polar Pattern | Omni-Directional |
| Interface | |
| Audio Interface | 3.5mm Phone Jack, Terminal block |
| General | |
| Power Source | DC 9-12V |
| Weight | 50g (0.06lb) |
| Bundled Accessories | Power cord, RCA to two wire Converter cable, RCA-to-3.5mm Jack Converter cable |
| Cable Length | 2.3 m |
| Storage Temperature | -25 °C ~ 85 °C (-13 °F ~ 185 °F) |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PMIC-0100 Datasheet
0.8mb
File
PMIC-0100 QIG web 20210809
0.5mb
File
Audio-In of_ACTi Cameras 20110408
0.3mb
