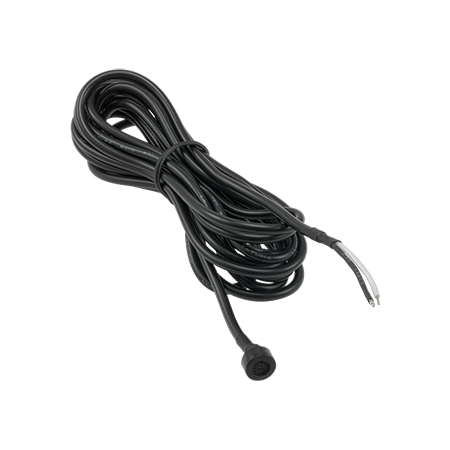

ACTi - PMIC-0201 - Passive Microphone Omnidirectional for all Cameras with Mic-In Audio using Cable Wire or Terminal Connector, 2m cable
Part number:
PMIC-0201
Price:
Passive Microphone Omnidirectional for all Cameras with Mic-In Audio using Cable Wire or Terminal Connector, 2m cable, no extra DC power needed.
Features:
- Passive Microphone
- Condenser Type
- Omni-Directional
| Device | |
| Product Type | Microphone |
| Description | Passive Microphone Omnidirectional for all Cameras with Mic-In Audio using Cable Wire or Terminal Connector, 2m cable, no extra DC power needed |
| Audio |
| Microphone Type | Passive |
| Transducer Type | Condenser |
| Frequency Response | 50 - 20000 Hz |
| Impedance | 2200 ohms |
| Audio Sensitivity | -34 +/- 3 dB |
| SNR | 58 dB |
| Operating Voltage | Standard 2V |
| Current Consumption | Max. 0.5mA |
| Polar Pattern | Omni-Directional |
| Interface |
| Audio Interface | Terminal block |
| General |
| Power Source | no extra DC power needed |
| Weight | 20g (0.04lb) |
| Cable Length | 2 m |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
