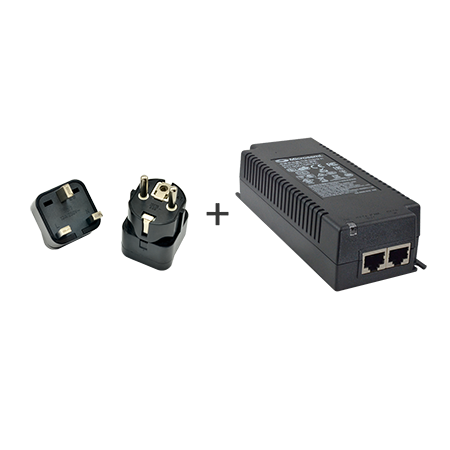

Acti - PPOE-0103 - High PoE Injector, 60W Gigabit, IEEE 802.3at compliant, AC 100~240V, with universal connectors
Part number:
PPOE-0103
Price:
High PoE Injector, 60W Gigabit, IEEE 802.3at compliant, AC 100~240V, with universal connectors (for I93~I910, I915,B915~B917, B922, B928, B945, B949, A950, A951, A952, A956)
| Device | |
| Original Manufacturer | Microsemi |
| Product Type | PoE Injector |
| Original Model | PD-9501GR |
| Description | High PoE Injector, 60W Gigabit, IEEE 802.3at compliant, AC 100~240V, with universal connectors (for I93~I910, I915,B915~B917, B922, B928, B945, B949, A950, A951, A952, A956) |
| Network | |
| Ethernet Port | (DATA & POWER OUT) |
| PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector | |
| (DATA IN) | |
| 1 x RJ-45 connector | |
| General | |
| PoE Standard | IEEE 802.3at |
| PoE Output | Maximum 60 Watts (4-pair) |
| PoE Power Budget | Maximum 60 W |
| Power Output | DC 55V |
| Power Source | AC 100-240V |
| Weight | 320g (0.71lb) |
| Dimensions | (W x H x D): 62mm x 38mm x 151mm (2.44" x 1.5" x 5.94") |
| Bundled Accessories | Universal power connector |
| Starting Temperature | -10°C ~ 40°C (14°F ~ 104°F) at 60 W, -10°C ~ 55°C (14°F ~ 131°F) at 30 W |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) at 60 W, -10°C ~ 55°C (14°F ~ 131°F) at 30 W |
| Power Connector Type | United States, Japan, United Kingdom, Europe, Australia |
| Approvals | FCC Class B, CE, RoHS, UL Listed (UL 60950-1), VCCI, GS, EN60950-1 |
| Color | Black |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
