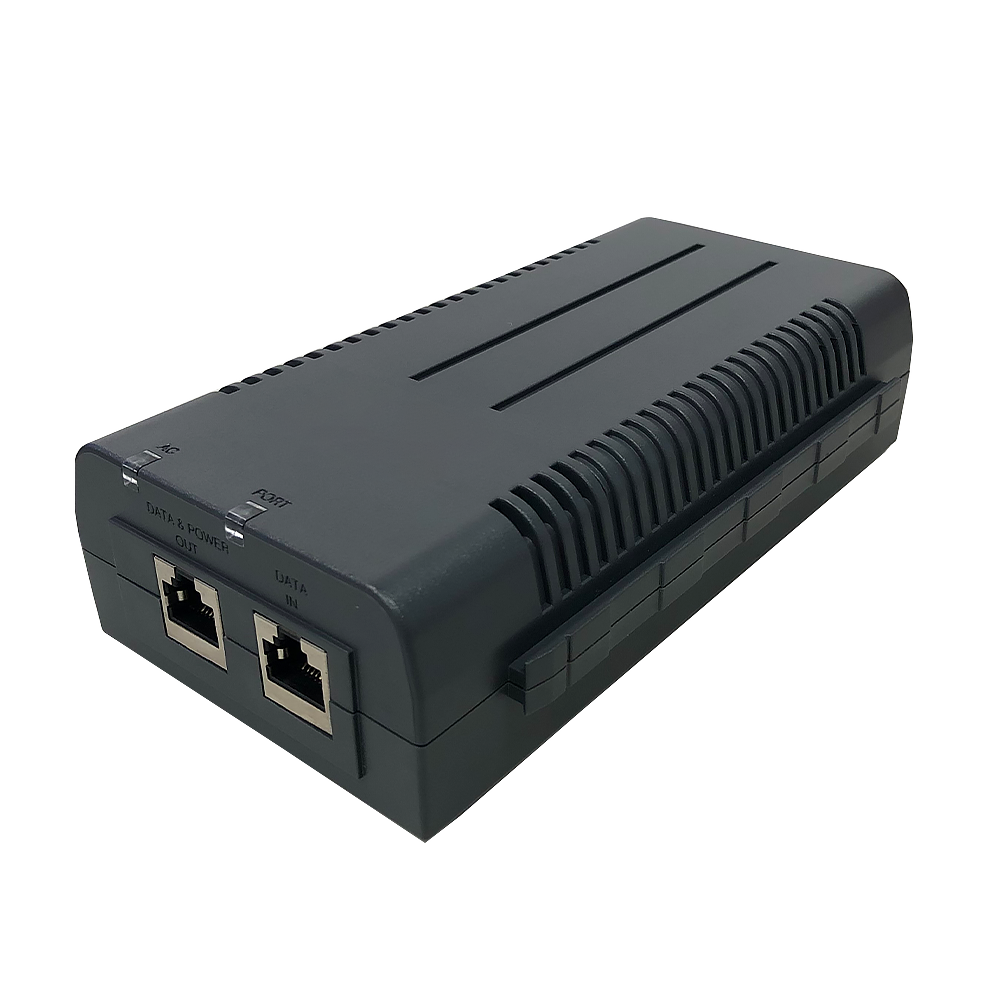

High PoE injector Single-port, IEEE 802.3bt Type 4, Gbps, 90W 4-Pairs POE indoor midspans, AC 100~240V, with universal connectors for Z953, Z954, Q83, Q84.
| Product Profile | |
|---|---|
| Product Type | PoE Injector |
| Description | High PoE injector Single-port, IEEE 802.3bt Type 4, Gbps, 90W 4-Pairs POE indoor midspans, AC 100~240V, with universal connectors (for Z953, Z954, Q83, Q84) |
| Network | |
| Ethernet Port | PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector |
| General | |
| PoE Standard | IEEE 802.3bt |
| PoE Output | Maximum 90 Watts (4-pair) |
| PoE Power Budget | Maximum 90 W |
| Power Source | AC 100-240V |
| Weight | 475g (1.05lb) |
| Dimensions | (L x W x H):166.4mm x 88.7mm x 43.9mm (6.55" x 3.49" x 1.73") |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Approvals | FCC, VCCI |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PPOE-0201_Datasheet_20250302.pdf
0.2mb
