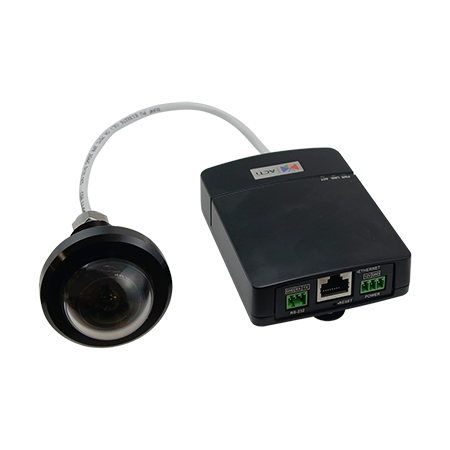

2MP Outdoor Fisheye Covert with Basic WDR, SLLS, Fixed lens, f1.19mm/F2.0 (HOV:182° (overview area), 111° (high detail area)), H.264, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK09, EN50155, DI/DO, RS-232, Includes Q13 camera and Flush mount
Features:
- 2 Megapixel
- Fisheye Lens with f1.19mm/F2.0
- Basic WDR
- 180°/360° Fisheye View
- Easy-to-Install for mounting solutions
- Event trigger, response and notification
Device
| Product Type | Covert |
| Maximum Resolution | 5MP |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3.2 " |
| Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Horizontal Resolution (TV Lines) | 1350 TVL |
| S/N Ratio | 52 dB |
Lens
| Focal Length | Fixed focal, f2.93mm |
| Aperture | F2.0 |
| Iris |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
File
Manual
2.2mb
File
Quick Guide
0.9mb
File
Diagram
0.1mb
