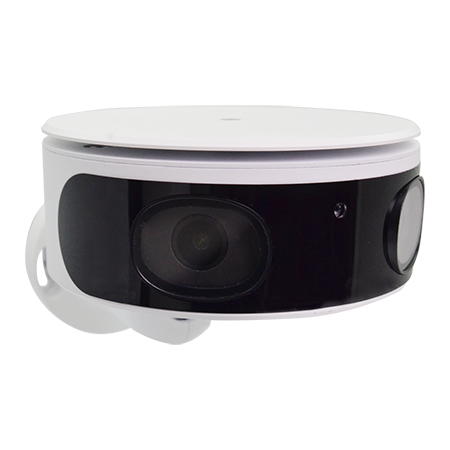

Acti - Q450 - 8MP Multi-Imager 180 Degree Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 2 Fixed lenses
Part number:
Q450
Price:
8MP Multi-Imager Panoramic Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 2 Fixed lenses, f2.8mm (HOV:180°), H.265/H.264, Dewarping.
Features:
- 8 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Superior WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Multi-Imager 180 Degree Bullet |
| Maximum Resolution | 8MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Effective Pixels | 2704(H) X 1568(V) (4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 15m |
| Electronic Shutter | 1-1/10000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 182° |
| Vertical Viewing Angle | 57.4° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 5120 x 1440 |
| Multi-Streaming | Simultaneous quad streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 2D + 3D DNR |
| Video Stitching | Seamless Video Stitching |
| Minimum Stitching Distance: 450 cm | |
| Built-in Analytics | Tampering Detection |
| Audio | |
| Network | |
| Network Protocol & Service | IPv4/v6, ARP, ICMP, IGMP, PPPoE, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (1000 Base-T), RJ-45 connector |
| Security | Password protected user level, IP address filtering, HTTPS encryption, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, External device through digital input, |
| Event Response | Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System | |
| Watchdog | Support |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | Google Chrome, Firefox |
| Interface | |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 2/1 (Terminal block) |
| Operating Button | Reset Button |
| General | |
| Power Source | AC 24V, PoE (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE, IR on), 15.86 W (AC, IR on) |
| Dimensions | (Ø x L): 140mm x 105.5mm (5.51" x 4.15") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE Class A, FCC Class A, IP66, IK10 (metal casing) |
| Material | Metal |
| Plastic |
