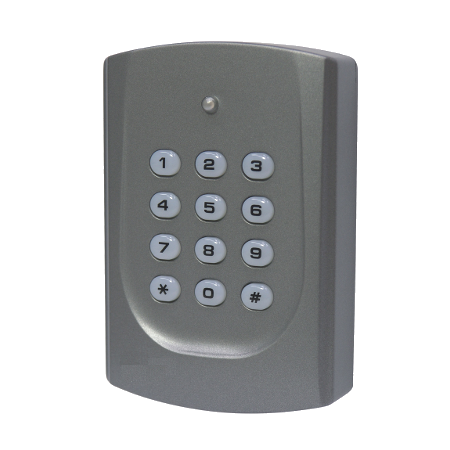

Acti - R10C-10 - 13.56MHz, Mifare Card Wiegand Reader with keyboard
Part number:
R10C-10
Price:
13.56MHz, Mifare Card Wiegand Reader with keyboard
Features:
- RFID Card Detection
- Wiegand Reader and Controller
- Built-in MIFARE Card Reading Module
| Device | |
| Product Type | Reader and Controller |
| Device Type | RFID Reader |
| Product Application | RFID Card Detection |
| Description | 13.56MHz, Mifare Card Wiegand Reader with keyboard |
| Video | |
| Built-in Analytics | RFID Recognition |
| RFID Card | |
| Communication Frequency | 13.56 MHz |
| RFID Standard | ISO 14443A |
| Reading Range | 3-8cm |
| RFID Options | MIFARE |
| General | |
| Power Source | DC 10-24V (adapter not included) |
| Power Consumption | 1 W (DC) |
| Weight | 89g (0.196lb) |
| Dimensions | (L x W x H):111mm x 77mm x 26mm (4.37" x 3.03" x 1.02") |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Material | Plastic (ABS) |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
