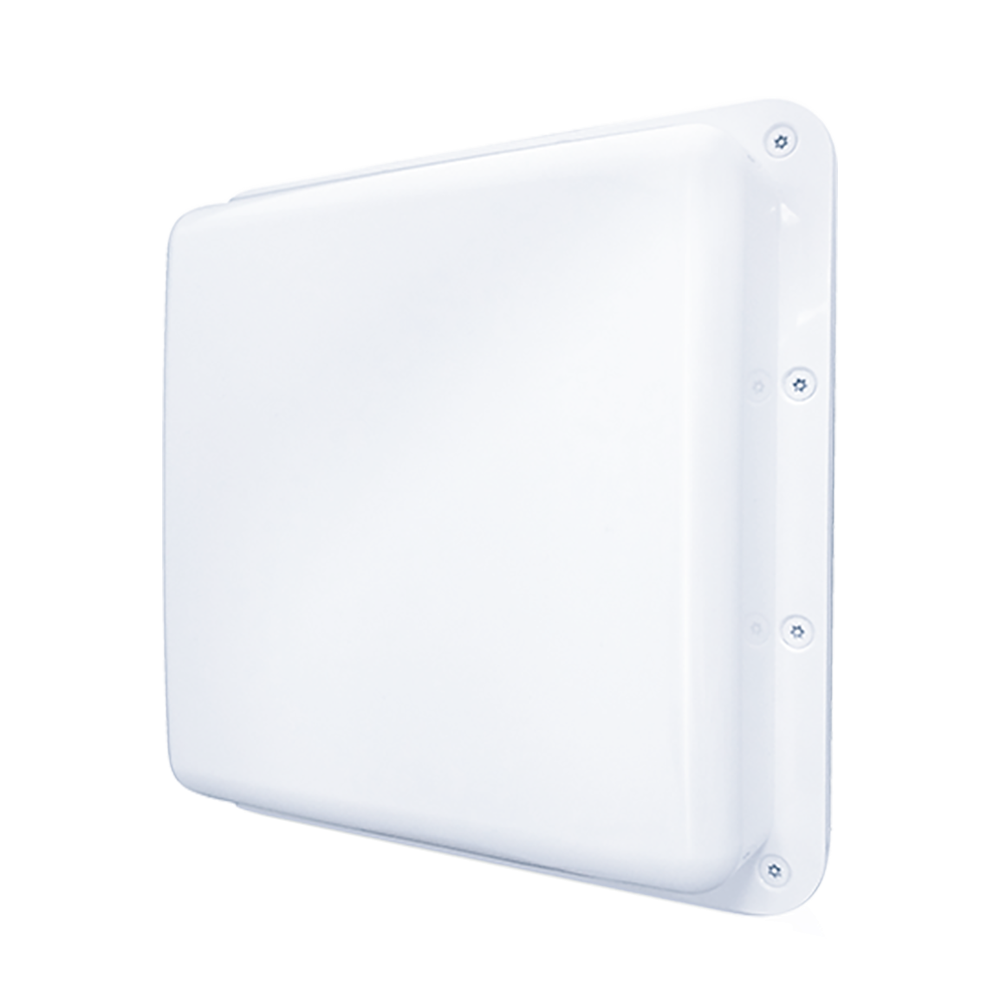

UHF RFID Reader with DC 12V, Wiegand, RS-485.
Features:
- UHF E-Tag Application
- Built-in EPC UHF Class 1 Gen 2 Card Reading Module
| Device | |
| Product Type | Reader and Controller |
| Device Type | RFID Reader |
| Product Application | UHF E-Tag Application |
| Application Environment | Indoor |
| Video |
| Built-in Analytics | RFID Recognition |
| Access Control Functionality |
| Wiegand Format | Wiegand 34 |
| RFID Card |
| Communication Frequency | 922-928 MHz |
| RFID Standard | ISO 18000-6C |
| Reading Range | 4-6m |
| RFID Options | EPC UHF Class 1 Gen 2 |
| Interface |
| Serial Port | 1 x RS-485 |
| Digital Input | Door contact x 1 |
| External Reader | Wiegand x 1 |
| General |
| Power Source | DC 12V 1.5A |
| Power Consumption | 18 W (DC) |
| Weight | 940g (2.07lb) |
| Dimensions | (W x H x D): 228mm x 228mm x 52mm (8.98" x 8.98" x 2.05") |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Operating Humidity | 0% - 95% RH |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
