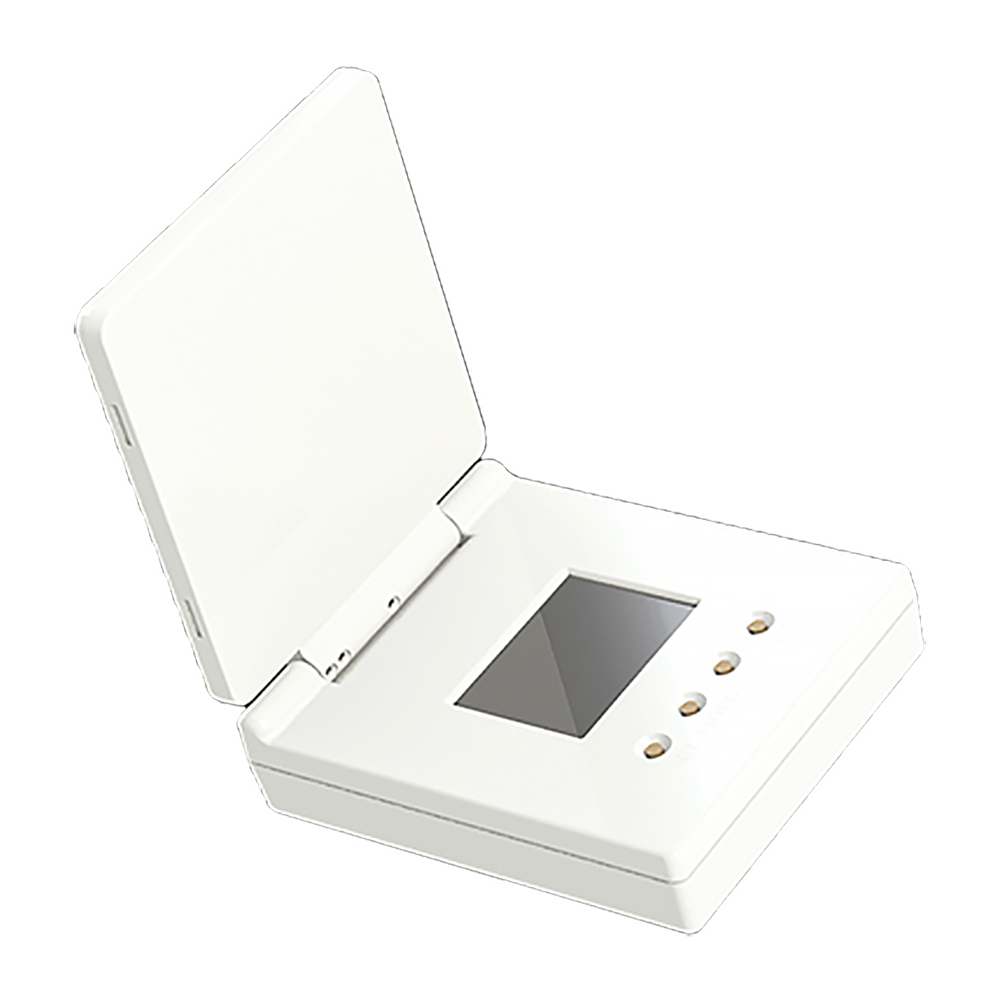

ACTi - R10C-15 - LCD UHF RFID Handheld Reader with Rechargeable battery included
Part number:
R10C-15
Price:
UHF RFID Handheld Reader with 2.2-inch LCD screen, internal antenna and 25 dBm RF module
Features:
- UHF E-Tag Application
- 2.2" LCD Monochrome LCD Display
- Built-in EPC UHF Class 1 Gen 2 Card Reading Module
| Device | - |
| Product Type | Reader and Controller |
| Device Type | RFID Reader |
| Product Application | UHF E-Tag Application |
| Application Environment | Indoor |
| Description | UHF RFID Handheld Reader with 2.2-inch LCD screen, internal antenna and 25 dBm RF module |
| LCD Screen | 2.2" Monochrome LCD Display |
| Video | |
| Built-in Analytics | RFID Recognition |
| RFID Card | - |
| Communication Frequency | 922-928 MHz |
| RFID Standard | ISO 18000-6C |
| Reading Range | >50cm |
| RFID Options | EPC UHF Class 1 Gen 2 |
| Battery | - |
| Battery Life | Continuous use: over 5 hours (battery fully charged), depending on user environment |
| Interface | - |
| Charger Port | Micro USB |
| Indicator | LED |
| General | - |
| Transmit Power | 23 dBm (adjustable) |
| Modulation Method | PR-ASK, ASK |
| Antenna Gain | 0.54 dBi |
| Antenna Receiving | 50 ohm U.FL |
| Receiver Sensitivity | -81 dBm |
| Power Source | Rechargeable Li-ion Battery |
| Power Consumption | 300mA |
| Weight | 225g (0.50lb) |
| Dimensions | (W x H x D): 94mm x 112.19mm x 30.5mm (3.70" x 4.42" x 1.20") |
| Bundled Accessories | Rechargeable Li-ion Battery |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 5% - 90% RH |
