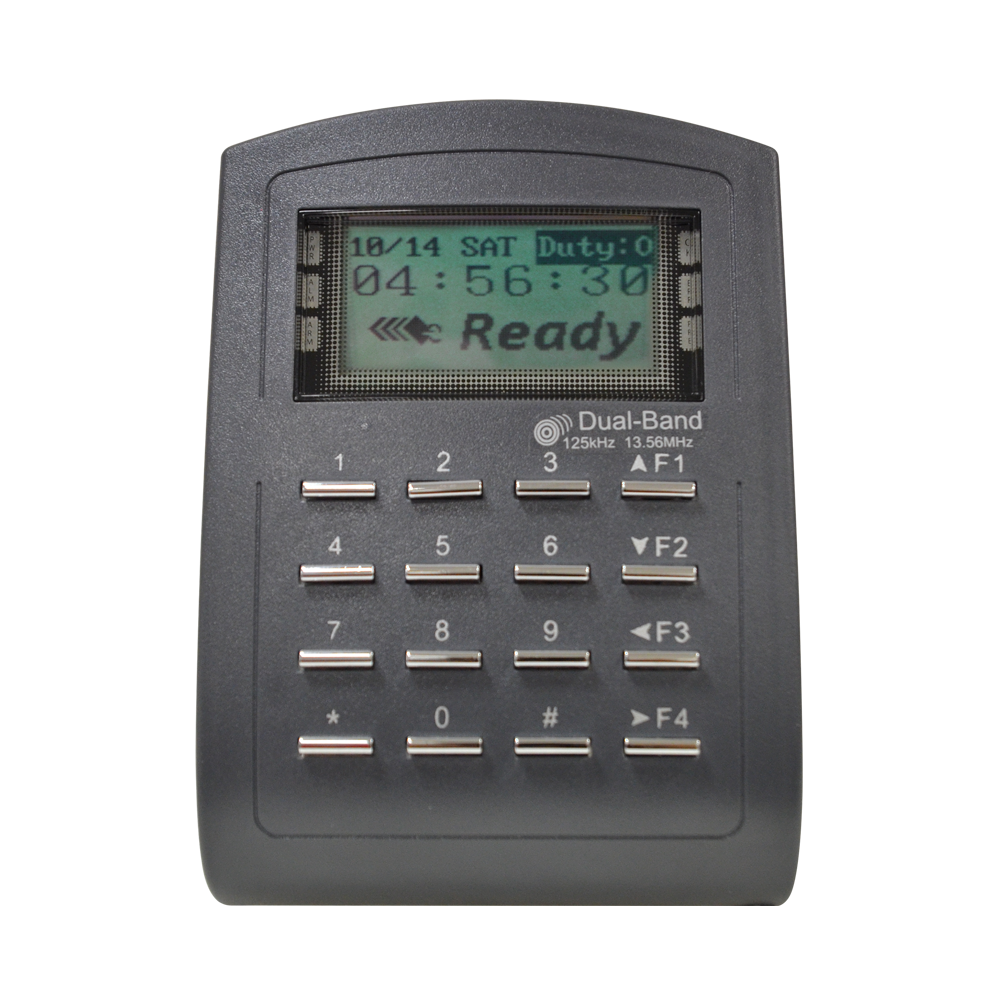

ACTi - R11C-30 - Dual Band LCD Card Reader and Controller with 16,000 Card Database
Part number:
R11C-30
Price:
Dual Band LCD Card Reader and Controller with 16,000 Card Database, Networking, Keypad, DC 10-24V, IP54, DI (Egress x 2, Door Contact x 2), Relay Output, Wiegand, RS-485
| Device | - |
Product Type | Reader and Controller |
| Product Application | RFID Card Detection |
| Description | LCD Access Controller with 16,000 Card Database |
| Lens | - |
| Video | |
Built-in Analytics | RFID Recognition |
| Video Analytics | |
Analysis Source Type | Text |
| Metadata Accuracy | Excellent |
| Event | |
Event Log | 32,000 |
| Access Control Functionality | |
Access Mode | Card only, Card or Password, Card and Password |
| RFID Card | - |
Communication Frequency | 125 KHz, 13.56 MHz |
| RFID Standard | [125 kHz] |
| EM Standard (ISO 11784, ISO 11785) | |
| [13.56 Mhz] | |
| ISO 14443A | |
| NFC Type 5, ISO/IEC 15693 | |
| Reading Range | [125 kHz] 5-15cm |
| [13.56 MHz] 2-5cm | |
| RFID Options | EM, MIFARE, NFC |
| Storage | - |
User Database | Card Capacity: 16,000 |
| General | - |
Power Source | DC 10-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Weight | 242g (0.534lb) |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
