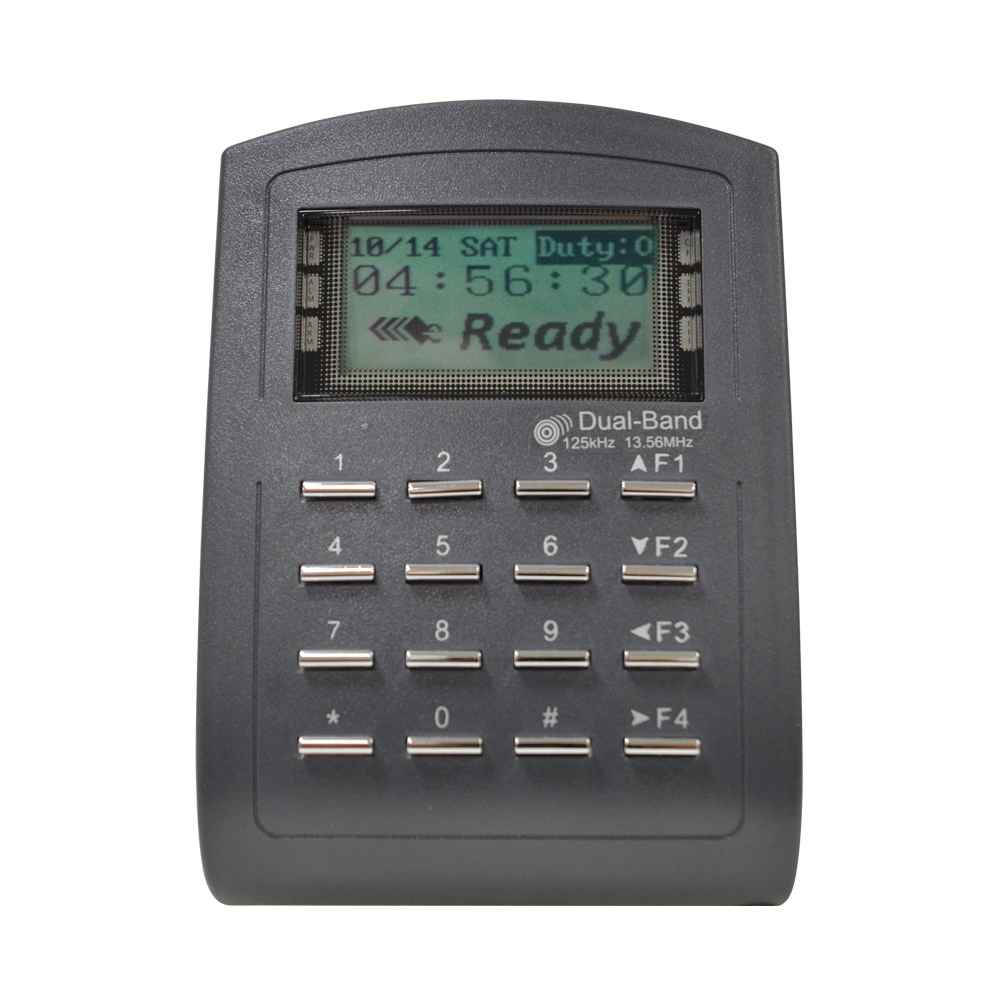

ACTi - R11C-33 - HID LCD Card Reader and Controller with 16,000 Card Database
Part number:
R11C-33
Price:
HID LCD Card Reader and Controller with 16,000 Card Database, TCP/IP, Keypad, Keypad, DC 10-24V, IP54, DI (Egress x 2, Door Contact x 2), Relay Output, Wiegand, RS-485
| Device | - |
| Product Type | Reader and Controller |
| Product Application | RFID Card Detection |
| Description | LCD Access Controller with HID Module, 16,000 Card Database |
| LCD Screen | Resolution: 128 x 64 |
| Video | - |
| Built-in Analytics | RFID Recognition |
| Video Analytics | |
| Analysis Source Type | Text |
| Metadata Accuracy | Excellent |
| Event | |
| Event Log | 32,000 |
| Access Control Functionality | |
| Access Mode | Card only, Card or Password, Card and Password |
| RFID Card | - |
| Communication Frequency | 125 KHz, 13.56 MHz |
| Reading Range | [125 kHz] 5-15cm |
| RFID Options | EM, MIFARE, NFC, HID Prox |
| Storage | - |
| User Database | Card Capacity: 16,000 |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input | Egress(R.T.E.) x 2, Door contact x 2 |
| Relay Output | Alarm relay x 1, Door lock x 1 |
| External Reader | Wiegand x 1 |
| General | - |
| Power Source | DC 10-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Weight | 242g (0.534lb) |
| Dimensions | (L x W x H):126mm x 91mm x 46mm (4.96" x 3.58" x 1.81") |
| Environmental Casing | Weather resistant (IP54) |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Operating Humidity | 20% - 90% RH |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
