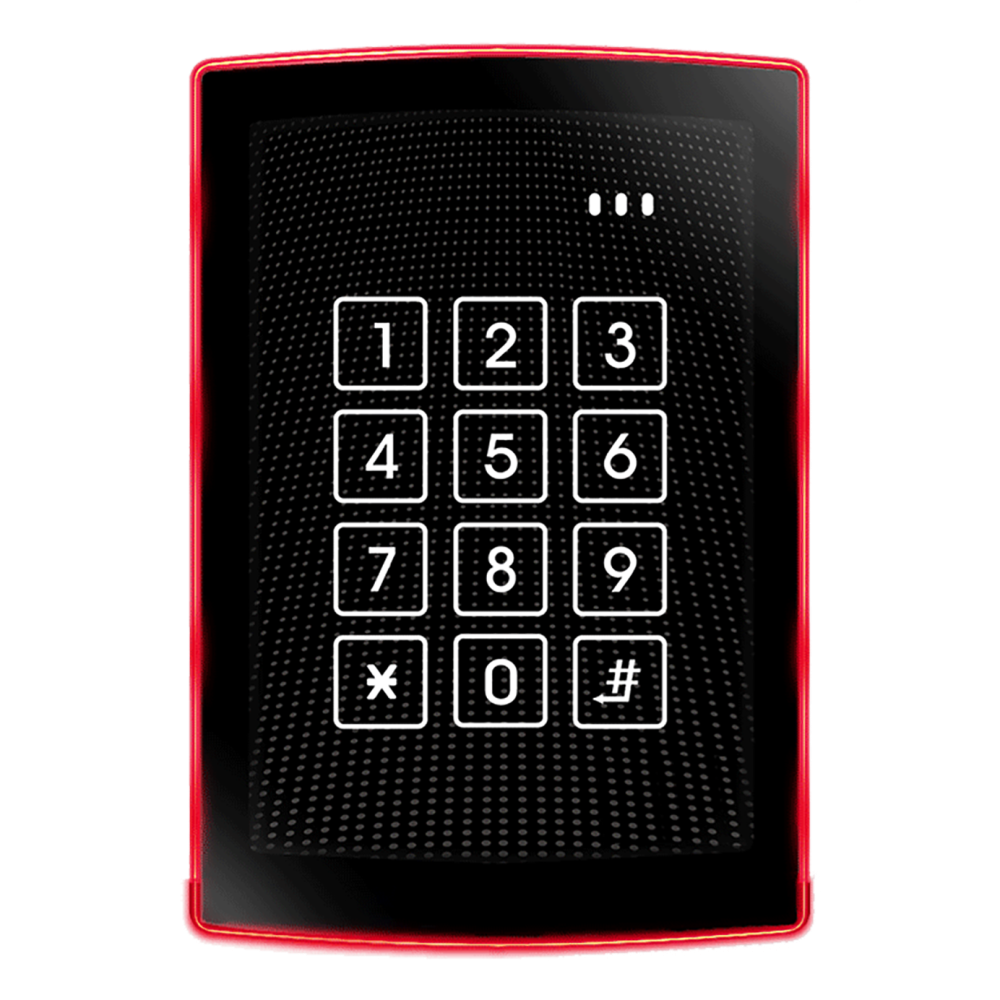

ACTi - R11C-34 - HID Card Reader and Controller with 3,000 Card Database
Part number:
R11C-34
Price:
HID Card Reader and Controller with 3,000 Card Database, Keypad, DC 10-24V, IP65, DI, Relay Output, Wiegand, RS-485
| Device | - |
| Product Type | Reader and Controller |
| Description | Access Controller with HID Module, 3,000 Card Database |
| Video | - |
| Built-in Analytics | RFID Recognition |
| Video Analytics | - |
| Analysis Source Type | Text |
| Metadata Accuracy | Excellent |
| Event | - |
| Event Log | 3000 |
| Access Control Functionality | - |
| Access Mode | Card only, Card or Password, Card and Password |
| RFID Card | - |
| Communication Frequency | 125 KHz, 13.56 MHz |
| Reading Range | [125 kHz] 3-7cm |
| RFID Options | EM, MIFARE, NFC, HID Prox |
| Storage | - |
| User Database | Card Capacity: 3000 |
| Interface | |
| Button | Illuminated touch-panel keypad |
| Serial Port | 1 x RS-485, 9600 bps (N,8,1) |
| Digital Input | Egress(R.T.E.) x 1, Door contact x 1 |
| Relay Output | Door lock x 1, Alarm relay x 1 |
| External Reader | Wiegand Input x 1 |
| Indicator | Outside Bi-Color LED Frame, LED x 3, Buzzer x 1 |
| General | - |
| Power Source | DC 9-24V (adapter not included) |
| Power Consumption | 3 W (DC) |
| Weight | 120g (0.26lb) |
| Dimensions | (W x H x D): 81mm x 118mm x 33.2mm (3.19" x 4.65" x 1.31") |
| Environmental Casing | Weather resistant (IP65) |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Operating Humidity | 20% - 90% RH |
| Color | Black |
| Material | Base Plate: Plastic (PC) |
