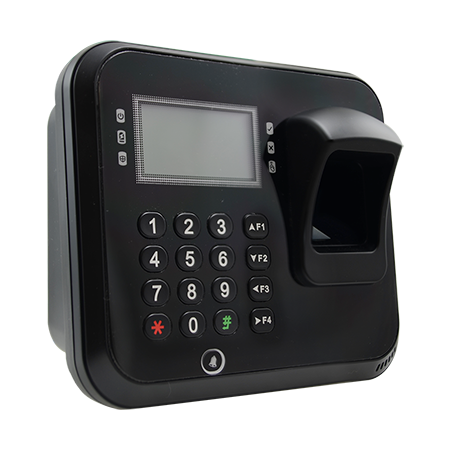

Acti - R12C-31 - Dual Band LCD Card Reader and Controller with 16,000 Card Database
Part number:
R12C-31
Price:
Dual Band LCD Card Reader and Controller with 16,000 Card Database , Door Bell Button, TCP/IP, DC 10-24V, IP55, DI (Egress x 2, Door Contact x 2), Relay Output, Wiegand, RS-485. Built-in EM, MIFARE, MIFARE Plus, MIFARE DESFire EV1, Felica, NFC Card Reading Module
| Device | |
| Product Type | Reader and Controller |
| Device Type | Access Controller RFID Reader QR Code Reader (project request) |
| Description | Dual Band LCD Card Reader and Controller with 16,000 Card Database |
| LCD Screen | 128x64 Monochrome LCD Display |
| Video | |
| Built-in Analytics | RFID Positioning |
| Video Analytics | |
| Analysis Source Type | Text |
| Metadata Accuracy | Excellent |
| Event | |
| Event Log | 32,000 |
| Access Control Functionality | |
| Access Mode | Card only |
| RFID Card | |
| Communication Frequency | 125 KHz, 13.56 MHz |
| Reading Range | [125 kHz] 5-15cm [13.56 MHz] 2-5cm [QR Code] 5-20cm |
| RFID Options | EM, MIFARE, MIFARE Plus, MIFARE DESFire EV1, Felica, NFC |
| Storage | |
| User Database | Card Capacity: 16,000 |
| General | |
| Power Source | DC 10-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
