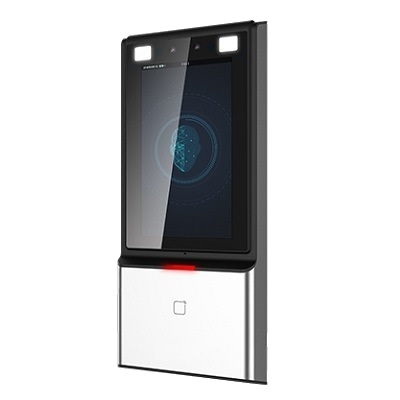

ACTi - R71CF-31 - 2MP Mifare LCD Card Face Recognition Wiegand Wireless Reader and Controller with Bundle 5,000 Card Database / 3,000 Face Database
ACTi - R71CF-31 - 2MP Mifare LCD Card Face Recognition Wiegand Wireless Reader and Controller with Bundle 5,000 Card Database / 3,000 Face Database
Part number:
R71CF-31
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

2MP Mifare LCD Card Face Recognition Wiegand Wireless Reader and Controller with Bundle 5,000 Card Database / 3,000 Face Database, Door Bell Button, Networking.



Features:

  • Access Control with Card + Face Recognition (99%)
  • 5" LCD Color Touch Screen
  • Wiegand Reader and Controller
  • Bundle with 3000 Face Database
  • Built-in MIFARE Card Reading Module
  • Not available in the USA
Device
Product TypeReader and Controller
Device TypeAccess Controller
RFID Reader
Face Reader
Maximum Resolution2MP
Product ApplicationAccess Control with Card + Face Recognition (99%)
Description2MP Mifare LCD Card Face Recognition Wiegand Wireless Reader and Controller with Bundle 5,000 Card Database / 3,000 Face Database, Door Bell Button, Networking
LCD Screen5" Color Touch Screen; Resolution: 480 x 800
Lens
Focal LengthFixed focal
Video
Built-in AnalyticsFace Recognition, RFID Recognition
Network
Ethernet PortNon-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector
Video Analytics
Analysis Source TypeVideo, Image
Metadata AccuracyExcellent
Face Recognition Distance0.3m - 1m
Event
Event Log100,000
System
Operating SystemLinux
Access Control Functionality
Access ModeCard only, Face only, Card and Face
RFID Card
Communication Frequency13.56 MHz
RFID StandardISO 14443A
RFID OptionsMIFARE
Storage
User DatabaseCard Capacity: 5000
Face Picture Capacity: 3000
Face Only Detection User Limit3000
Interface
Serial Port1 x RS-485
WirelessWi-Fi (IEEE 802.11b/g/n)
Digital Input/Output2/1
General
Power SourceDC 12V (adapter not included), 2 A
Weight919g (2.026lb)
Dimensions(W x H x D): 281.5mm x 113mm x 45mm (11.08" x 4.45" x 1.77")
Environmental CasingWeather resistant (IP65)
Operating Temperature-20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity10% - 90% RH
ApprovalsCE, FCC
ColorSilver
Warranty1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
User Manual
1.3mb
