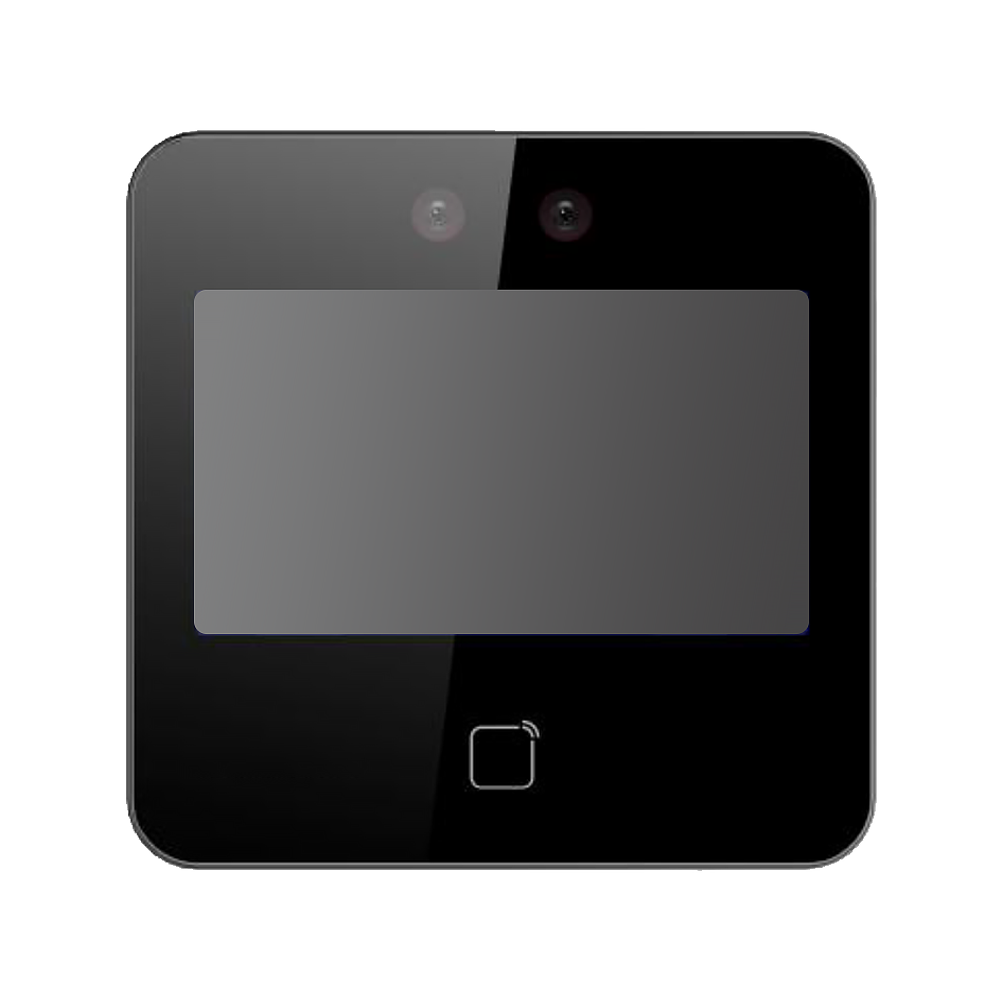

Implement video access control functionality via facial recognition and MIFARE RFID card reading with the R71CF-312 2MP MIFARE Face Recognition Reader & Controller from ACTi. Designed for indoor use, this unit features a camera that captures 2MP resolution video via dual lenses. It comes bundled with a database capable of reading and recognizing up to 1,500 faces. Additionally, it has a built-in RFID MIFARE module to read up to 3,000 cards.
| General | |
|---|---|
| Compatibility | Various RFID Credentials |
| Operating System | Linux |
| Maximum Resolution | 2 MP |
| Lens | 2 Lenses |
| Display | |
| Panel Type | LCD |
| Display Size | 4.3" |
| Touchscreen | Yes |
| Inputs/Outputs | |
| Interface | 1 x RS-485 1 x Exit Button, 1 x Door Contact 1 x Door Lock 1 x Wiegand Output |
| Network | 1 x 100M RJ45 Ethernet |
| Power | |
| Power Source | DC Input (Included) |
| DC Input Power | 12 VDC at 1 A |
| Physical | |
| Mounting | Multiple Surface, Wall |
| Color | Black |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 0 to 90% Humidity |

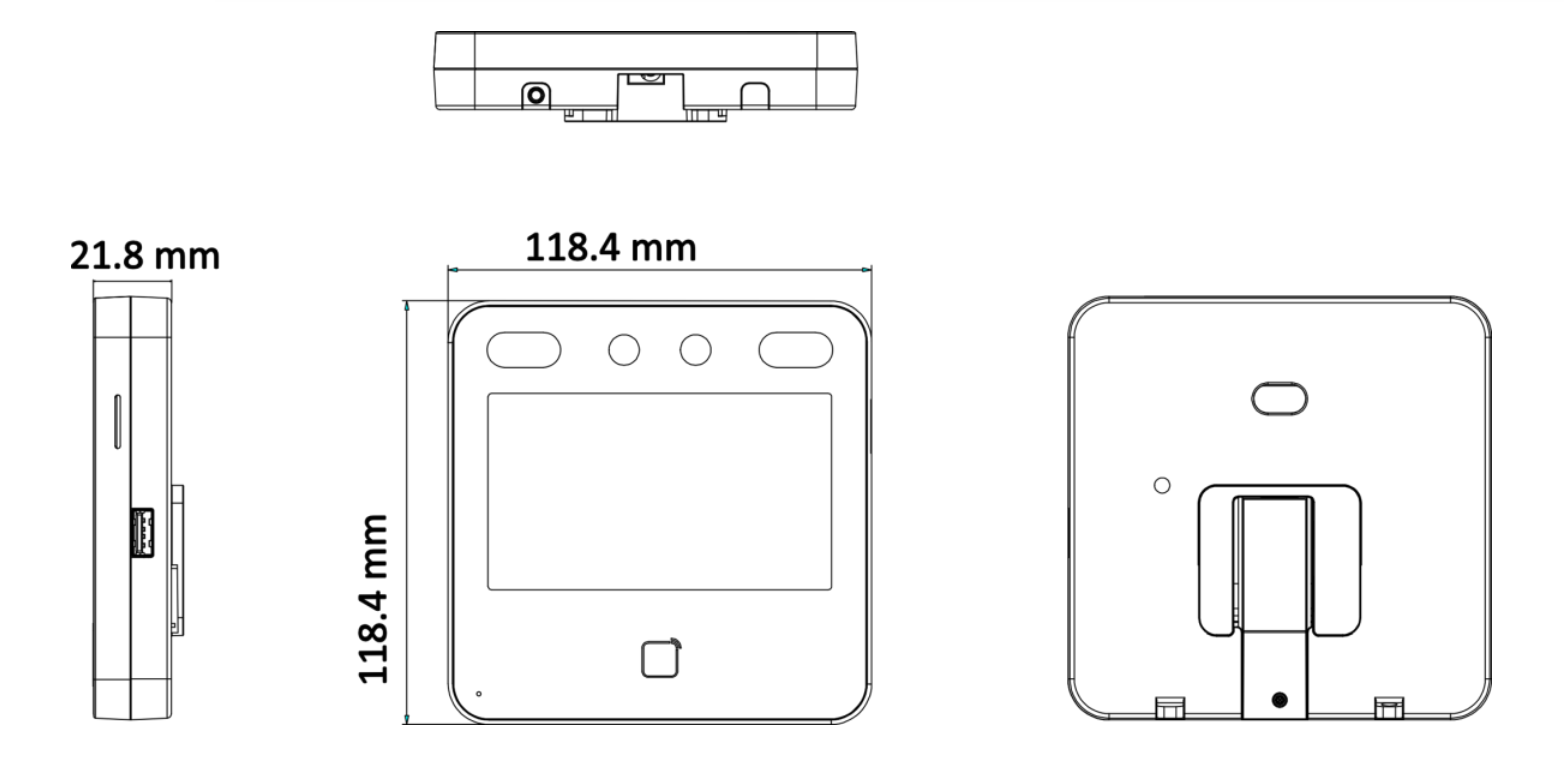

| Dimensions | 4.7 x 4.7 x 0.9" / 118.4 x 118.4 x 21.8 mm |
Name
Description
Size
Downloads
File
R71CF-312_Datasheet_20251102_0.pdf
0.2mb
File
R71CF-311_R71CF-312_Users_Manual_20240516_0.pdf
1.8mb
