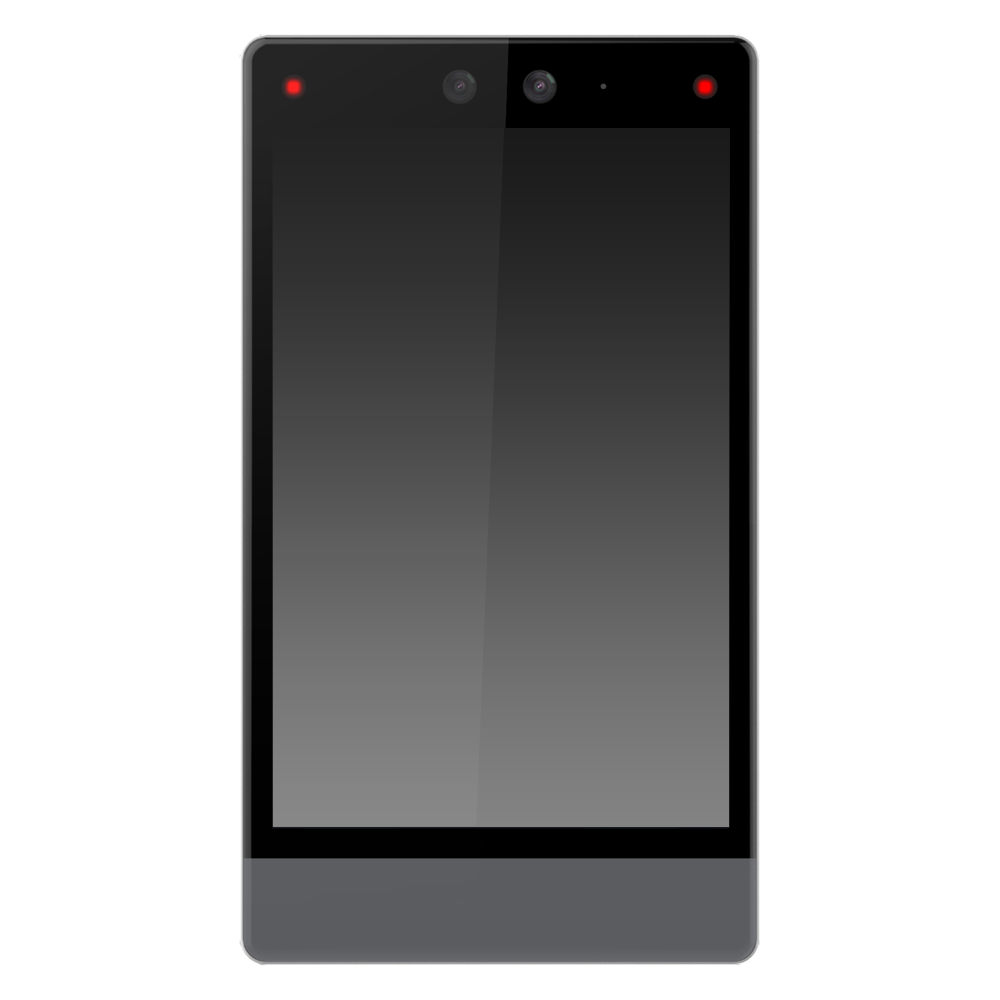

ACTi - R71CF-39 - 2MP Face Recognition Reader and Controller (100,000 Database), Audio, DC12V, IP65, DI x 2, DO x 1, Wiegand, RS-485
Part number:
R71CF-39
Price:
Semi-Outdoor 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 100,000 Card Database / 100,000 Face Database.
Features:
- Access Control with Card + Face Recognition
- 8" LCD Color Touch Screen
- Wiegand Reader and Controller
- Bundle with 100,000 Face Database
- Built-in MIFARE, DESFire Card Reading Module
- Not available in the USA
| Device | |
| Product Type | Reader and Controller |
| Device Type | Access Controller RFID Reader Face Reader |
| Maximum Resolution | 2MP |
| Product Application | Access Control with Card + Face Recognition |
| Application Environment | Semi-Outdoor |
| Description | Semi-Outdoor 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 100,000 Card Database / 100,000 Face Database. |
| LCD Screen | 8" Color Touch Screen; Resolution: 1280 × 800 |
| Lens |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal |
| Video |
| Built-in Analytics | Face Recognition, RFID Recognition |
| Network |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Video Analytics |
| Face Recognition Distance | 0.3m - 3m |
| Event |
| Event Log | 150,000 |
| System |
| Operating System | Linux |
| Language | English |
| Access Control Functionality |
| Access Mode | Card only, Face only, Card and Face |
| Wiegand Format | Wiegand 26, Wiegand 34 |
| RFID Card |
| Communication Frequency | 13.56 MHz |
| RFID Standard | ISO 14443A |
| Reading Range | 0-5cm |
| RFID Options | MIFARE, DESFire |
| Storage |
| User Database | Card Capacity: 100,000 Face Picture Capacity: 100,000 |
| Card + Face Detection User Limit | 100,000 |
| Face Only Detection User Limit | 100,000 |
| Interface |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 2/1 |
| Digital Input | Exit Button x 1, Door contact x 1 |
| Relay Output | Door lock x 1 |
| External Reader | Wiegand x 1 |
| General |
| Power Source | DC 12V, 3 A |
| Dimensions | (W x H x D): 127.3mm x 232.1mm x 23.5mm (5.0" x 9.1" x 0.9") |
| Environmental Casing | Weather resistant (IP65) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 0% - 90% RH |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
