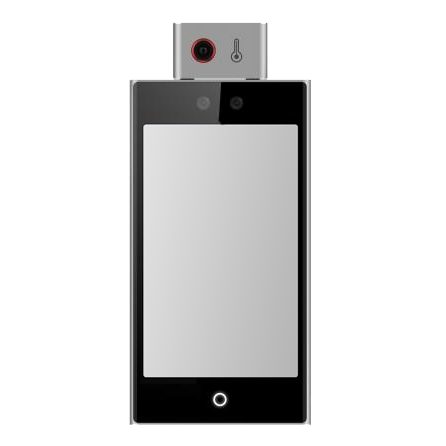

The ACTi R72FT-32 Face Recognition & Temperature RFID Reader and Controller is a cutting-edge access control solution designed for optimized security and convenience. With its multifaceted capabilities including face recognition, temperature detection, and RFID card access, this device ensures a comprehensive approach to monitoring and controlling entry. The user-friendly 7" LCD touch screen provides effortless navigation, making it an essential addition to modern security systems.
• Access Control: Combined functionality of Card, Face Recognition, and Temperature Detection enhances security and efficiency in controlling entry.
• 7" LCD Color Touch Screen: The large, intuitive display facilitates easy operation and quick access to vital features.
• Built-in Mifare Card Reading Module: Supports fast and reliable access through Mifare technology, ensuring smooth user experiences.
• QR Code Support: Flexible compatibility for QR codes expands access options for users, making entry seamless.
| Product Profile | |
|---|---|
| Product Type | Reader and Controller |
| Device Type | Access Controller RFID Reader Face Reader Fingerprint Reader QR Code Reader |
| Product Application | Access Control with Card + Face Recognition + Temperature Detection |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Effective Pixels | Thermal: 120(H) X 160(V) |
| LCD Screen | 7" Color Touch Screen; Resolution: 600 x 1024 |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal |
| Video | |
| Built-in Analytics | Face Recognition, Face Mask Detection, Human Body Temperature Detection, RFID Recognition |
| Network | |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Video Analytics | |
| Face Recognition Distance | 0.3m - 3m |
| Temperature Measurement | |
| Temperature Range | 30°C ~ 45°C (86°F ~ 113°F) |
| Temperature Detection Distance | 0.3m ~ 3m |
| Event | |
| Event Log | 150,000 |
| System | |
| Operating System | Linux |
| USB | 1-Port USB Type C |
| Language | Multi-Language |
| Access Control Functionality | |
| Access Mode | Card only, QR Code, Card and Face, Card and Temperature |
| RFID Card | |
| RFID Frequency | 13.56 MHz |
| RFID Standard | Mifare FeliCa DESFire EV1, EV2 |
| Reading Range | 0-3cm |
| RFID Options | Mifare |
| Storage | |
| User Database | Card Capacity: 500000 Face Picture Capacity: 100000 Fingerprint Capacity: 10000 |
| Card + Face Detection User Limit | 100,000 |
| Face Only Detection User Limit | 100,000 |
| General | |
| Power Source | DC 12-24V, 2 A |
| Power Consumption | 10 W (DC) |
| Weight | 0.57g (1.26lb) |
| Dimensions | (W x H x D): 110.5mm x 247.7mm x 24mm (4.35" x 9.75" x 0.94") |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 0% - 90% RH, non-condensing |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
