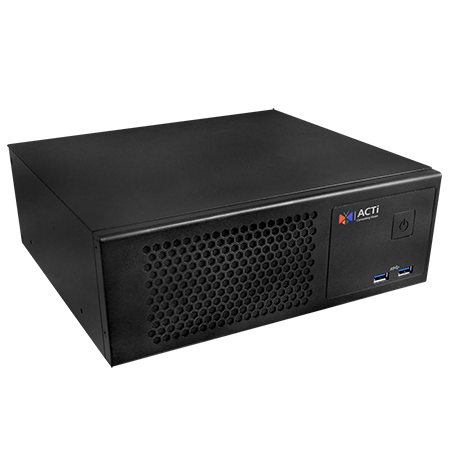

ACTI - SHM-102 - 200-Channel 1-Bay Mini Standalone System Health Management Server with HDMI, DVI and Display port
Part number:
SHM-102
Price:
200-Channel 1-Bay Mini Standalone System Health Management Server with HDMI, DVI and Display port, 1-channel free license included, 1-Bay (One 2TB storage disk included), Audio, AC 100-240V
Features:
- 1-bay Standalone System Health Management Server
- Intel Core i7-6700TE, 16GB
| Device | |
| Product Type | System Health Management Server |
| Maximum Number of Devices | 200 |
| Hardware | |
| CPU | Intel Core i7-6700TE |
| RAM | 16GB, DDR4, 2133MT/s |
| License | |
| License required | Yes (The license LMAS5000 that allows one server (e.g. NVR or CMS), including the cameras underneath them, to be monitored via System Health Management Server.) |
| Free License | No |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-out |
| Network | |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| System | |
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 3.0 |
| Storage | |
| System Drive | M.2 SSD, 256GB |
| Storage Bay | SATA, Max. 1 Disk(s) (One 2TB storage disk included) |
| HDD Size | 3.5" |
| Interface | |
| Serial Port | 2 x RS-232 |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1 |
| General | |
| Power Source | AC 100-240V |
| Dimensions | (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1") |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 5% - 90% RH |
| Color | Black |
| Warranty | 3 Year(s). For extended warranty offering. |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
