ACTi - TCM-1111 - 1.3MP with IR LED 15m (0 lux, 30IRE, Max Exposure Gain)
Product Overview

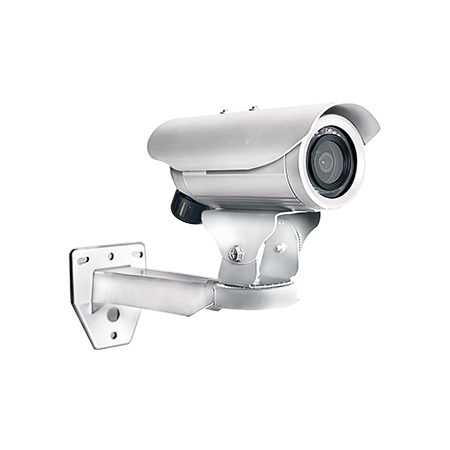

The ACTi TCM-1111 is a 1.3MP outdoor fixed bullet camera with a 4.2mm lens and IR illumination up to 15m. It uses a progressive scan CMOS sensor and supports day/night operation for surveillance in changing lighting conditions.
Key Configuration
Product type: fixed bullet camera; application environment: outdoor; maximum resolution: 1.3MP; image sensor: progressive scan CMOS; sensor size: 1/3"; lens: 4.2mm; day/night: yes; IR working distance: 15m; weatherproof rating: IP66.
Key Features
• 1.3MP outdoor fixed bullet camera
• Fixed 4.2mm lens for dedicated scene coverage
• IR LED illumination up to 15m
• Mechanical IR cut filter for day/night operation
• Weatherproof IP66 housing for outdoor use
Technical Context
The camera uses a 1/3" progressive scan CMOS sensor with standard low-light sensitivity. Minimum illumination is specified as color: 0.5 lux at F1.0 and black-and-white: 0 lux at F1.0 with IR LED on, with an IR sensitivity range of 700-1100nm.
Installation Notes
The TCM-1111 is intended for outdoor bullet camera installations where a fixed viewing direction and infrared night coverage are required. Its IP66-rated housing supports deployment in exposed surveillance locations.
| Product Profile | |
| Product Type | Fixed Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 1.3MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0 lux at F1.0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | IR LED |
| IR Working Distance | 15m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch |
| Electronic Shutter | 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 64.7° |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Digital Noise Reduction | No |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Heat Map, Dwell Time, Unattended Object Detection, Smoke Detection, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 8.0 or newer |
| General | |
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 5.76 W (PoE, IR on) |
| Weight | 610g (1.35lb) |
| Dimensions | (Ø x L): 77mm x 193mm (3.04" x 7.60") |
| Environmental Casing | Weatherproof (IP66) |
| Mount Type | Bracket, Pole Mount, Corner Mount |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, IP66, UL (for optional PoE injector) |
| Warranty | 3 Year(s). For extended warranty offering |
