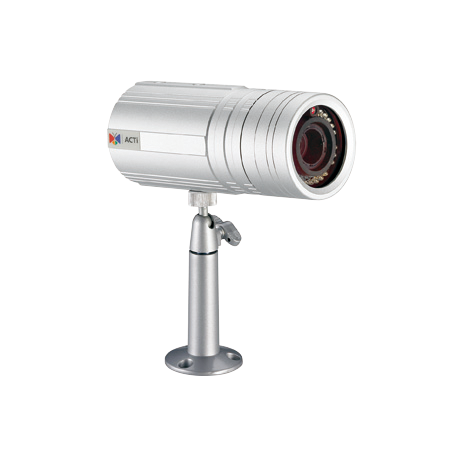

ACTi - TCM-1511 - 0.31MP Fixed Bullet with IR LED 30m (0 lux, 30IRE, Max Exposure Gain)
Product Overview
The ACTi TCM-1511 is a 0.31MP fixed bullet camera designed for day and night surveillance. It uses a progressive scan CMOS sensor with a 3.3-12mm vari-focal lens and provides IR illumination up to 30m for low-light monitoring.
Key Configuration
Product type: Fixed Bullet; maximum resolution: 0.31MP; image sensor: Progressive Scan CMOS; sensor size: 1/3"; lens: f3.3-12mm vari-focal; day/night: Yes; IR LED: 24 LEDs at 850 nm; IR working distance: 30m.
Key Features
• 0.31MP fixed bullet camera for basic surveillance applications
• 3.3-12mm vari-focal lens for adjustable scene coverage
• IR LED x 24 with 30m night viewing distance
• Mechanical IR cut filter for day/night operation
• Configurable CDS sensor and DSP-based color to B/W switching
Technical Context
The camera supports color imaging at 0.5 lux at F1.0 and black-and-white imaging at 0 lux when the IR LED is active. Its IR sensitivity range is 700-1100nm, with electronic shutter ranges of 1/30-1/1000 second in manual mode and 1/5-1/15000 second in auto mode.
Installation Notes
The fixed bullet form factor is suited for directional mounting where a defined viewing angle is required. The 30m IR working distance supports installations that need night coverage across entry points, corridors, or perimeter-facing areas.
| Product Profile | |
| Product Type | Fixed Bullet |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0 lux at F1.0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | IR LED x 24 (850 nm) |
| IR Working Distance | 30m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch, configurable DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Vari-focal, f3.3-12mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations Simultaneous dual streams based on two configurations |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Sharpness, Automatic exposure, Automatic gain control (AGC), Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, Automatic License Plate Recognition, Vehicle Speed Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | 3.5mm Phone Jack |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.16 W (PoE, IR on), 6.96 W (DC, IR on) |
| Weight | 505g (1.11lb) |
| Dimensions | (Ø x L): 68mm x 130.6mm (2.68" x 5.14") |
| Mount Type | Bracket, Pole Mount, Corner Mount |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | Camera: CE, FCC, Adapter: CE, TUV-GS, UL, RCM, CCC |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering |
