ACTi - TCM-3001 - 0.31MP f4.2mm Indoor Fixed Dome with
Product Overview

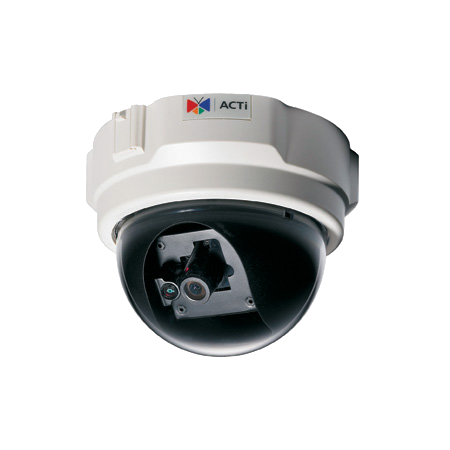

The ACTi TCM-3001 is a 0.31MP indoor fixed dome camera with a 4.2mm lens. It uses a progressive scan CMOS sensor and is designed for standard indoor surveillance where compact dome coverage is required.
Key Configuration
Product type: Fixed Dome; application environment: Indoor; maximum resolution: 0.31MP; image sensor: Progressive Scan CMOS; sensor size: 1/3"; lens: f4.2mm; day/night: No; low light sensitivity: Standard; S/N ratio: 44 dB.
Key Features
• 0.31MP indoor fixed dome camera
• 4.2mm fixed lens for general scene coverage
• Progressive scan CMOS image sensor
• DSP-based configurable color to B/W switching
• Standard low-light sensitivity for indoor monitoring
Technical Context
The camera specifies minimum illumination of 0.5 lux at F1.0 in both color and B/W modes at 30 IRE and 2400 K. It does not include a mechanical IR cut filter, and its electronic shutter ranges from 1/30-1/1000 second in manual mode and 1/5-1/15000 second in auto mode.
Installation Notes
The fixed dome form factor is intended for indoor mounting where a stable, enclosed camera body is preferred. Its fixed 4.2mm lens is best suited for predefined viewing areas that do not require optical zoom or lens adjustment.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Indoor |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| Color to B/W Switch | DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 64.7° |
| Viewing Angle Adjustment | Pan: 0°-170°, Tilt: 0°-180° |
| Video | |
| Compression | H.264, MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.72 W (PoE), 4.8 W (DC) |
| Weight | 350g (0.7lb) |
| Dimensions | (Ø x H): 130mm x 99mm (5.12" x 3.90") |
| Mount Type | Surface, Flush, Wall Mount, Pendant, Pole Mount, Corner Mount |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Approvals | CE, FCC |
| Real-time Clock (RTC) | No |
| Warranty | 3 Year(s). For extended warranty offering |
