ACTi - TCM-3011 - 0.31MP Indoor Fixed Dome with IR LED 30m (0 lux, 30IRE, Max Exposure Gain)
Product Overview

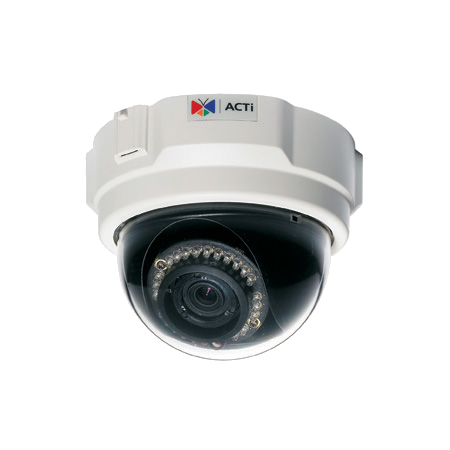

The ACTi TCM-3011 is a 0.31MP indoor fixed dome camera with a 3.3-12mm vari-focal lens. It supports day/night operation and includes IR illumination up to 30m for indoor monitoring in low-light conditions.
Key Configuration
Product type: Fixed Dome; application environment: Indoor; maximum resolution: 0.31MP; image sensor: Progressive Scan CMOS; sensor size: 1/3"; lens: f3.3-12mm vari-focal; day/night: Yes; IR working distance: 30m; S/N ratio: 44 dB.
Key Features
• 0.31MP indoor fixed dome camera
• 3.3-12mm vari-focal lens for adjustable coverage
• IR LED support with 30m working distance
• Mechanical IR cut filter for day/night imaging
• Configurable CDS sensor and DSP-based color to B/W switching
Technical Context
The camera specifies minimum illumination of 0.5 lux at F1.0 in color mode and 0 lux at F1.0 when the IR LED is active. Its IR sensitivity range is 700-1100nm, with electronic shutter ranges of 1/30-1/1000 second in manual mode and 1/5-1/15000 second in auto mode.
Installation Notes
The indoor dome housing is suited for ceiling or wall-mounted surveillance where a compact enclosed camera body is preferred. The vari-focal lens allows the installer to adjust the field of view during setup for the required indoor coverage area.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Indoor |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0 lux at F1.0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | IR LED |
| IR Working Distance | 30m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch, configurable DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Vari-focal, f3.3-12mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 75.4° - 22.7° |
| Viewing Angle Adjustment | Pan: 0°-330°, Tilt: 30°-90° |
| Video | |
| Compression | H.264, MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 9.12 W (PoE), 6.72 W (DC) |
| Weight | 380g (0.84lb) |
| Dimensions | (Ø x H): 130mm x 99mm (5.12" x 3.90") |
| Mount Type | Surface, Flush, Wall Mount, Pendant, Pole Mount, Corner Mount |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Approvals | CE, FCC |
| Real-time Clock (RTC) | No |
| Warranty | 3 Year(s). For extended warranty offering |
