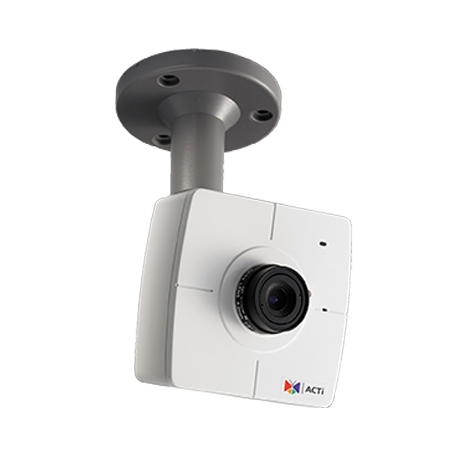

ACTI - TCM-4201 - 1.3MP with Fixed Lens
Affordable, yet powerful IP cameras that are easy to install – ideal for home surveillance or SOHO.
- 1.3 Megapixel
- Fixed Lens with f4.2mm/F1.8
- Event trigger, response and notification
Part number:
TCM-4201
Price:
Device
| Product Type | Cube |
| Maximum Resolution | 1.3MP |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 K) |
| Color to B/W Switch | DSP based switch, configurable |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz), 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
Lens
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | CS Mount (interchangeable lens) |
| Horizontal Viewing Angle | 64.1° |
Video
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Automatic exposure, Flickerless |
| Digital Noise Reduction | No |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
Audio
| Audio Type | 2-way, Built-in Microphone, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
Event
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 6.0 or newer |
Interface
| Audio Interface | Built-in microphone, 3.5mm Phone Jack |
| Local Storage | No |
| Digital Input/Output | 1/1 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 4.32 W (PoE), 3.84 W (DC) |
| Weight | 160g (0.35lb) |
| Dimensions | (W x H x D): 88mm x 85mm x 39mm (3.47" x 3.35" x 1.54") |
| Environmental Casing | No |
| Bundled Accessories | Bracket |
| Mount Type | Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
