ACTi - TCM-4511 - 1.3MP Indoor Fixed Cube IP Camera with 4.2mm Lens
Product Overview

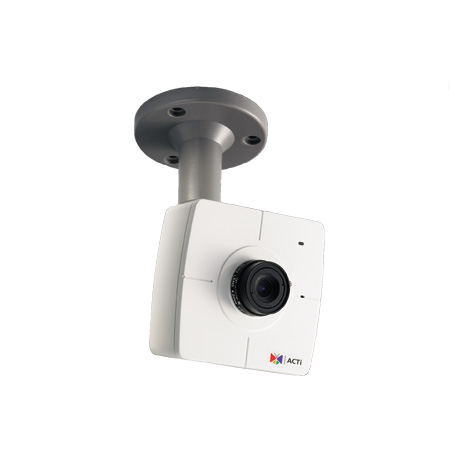

The ACTi TCM-4511 is an indoor fixed cube camera with 1.3MP resolution and a fixed f4.2mm lens. It uses a progressive scan CMOS image sensor and is designed for standard indoor surveillance where a compact cube-style camera is required.
Key Configuration
Product type: Fixed Cube; application environment: Indoor; maximum resolution: 1.3MP; image sensor: Progressive Scan CMOS; sensor size: 1/3"; lens: f4.2mm fixed; day/night: No; mechanical IR cut filter: No.
Key Features
• 1.3MP indoor fixed cube camera
• Fixed f4.2mm lens
• Progressive scan CMOS image sensor
• Standard low light sensitivity
• DSP based configurable color to B/W switching
Technical Context
The camera is specified with minimum illumination of color: 0.5 lux at F1.0 and B/W: 0.5 lux at F1.0, both at 30 IRE and 2400 K. Electronic shutter control supports 1/30-1/1000 second in manual mode at 60 Hz and 1/5-1/15000 second in auto mode.
Installation Notes
The fixed cube design is intended for indoor mounting where a compact camera body and fixed viewing direction are suitable for the surveillance area.
| Product Profile | |
| Product Type | Fixed Cube |
| Application Environment | Indoor |
| Maximum Resolution | 1.3MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| Color to B/W Switch | DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz), 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | CS Mount (interchangeable lens) |
| Horizontal Viewing Angle | 69.2° |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Digital Noise Reduction | No |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, Bonjour, SNMP |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 8.0 or newer |
| General | |
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 4.51 W (PoE) |
| Weight | 150g (0.33lb) |
| Dimensions | (W x H x D): 88mm x 85mm x 39mm (3.47" x 3.35" x 1.54") |
| Bundled Accessories | Bracket |
| Mount Type | Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, UL (for optional PoE injector) |
| Warranty | 1 Year(s). For extended warranty offering |
