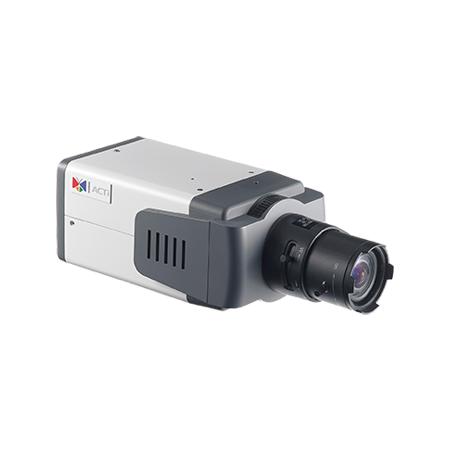

ACTI - TCM-5311 - 1.3MP, Box, Day / Night, Superior Low Light Sensitivity
Part number:
TCM-5311
Price:
1.3 Megapixel, Event trigger, response and notification
Device
| Product Type | Box |
| Maximum Resolution | 1.3MP |
| Application Environment | Indoor/Outdoor |
| Image Sensor | CCD |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.15 lux at F1.2 (30 IRE, 2400 K); B/W: 0.05 lux at F1.2 (IR LED on) |
| Color to B/W Switch | DSP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Electronic Shutter | 1/60-1/10000 second (manual mode, 60 Hz), 2-1/100000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 900 TVL |
Lens
| Focal Length | Vari-focal lens available. The lens needs to be purchased separately. |
| Lens Mount | CS Mount (interchangeable lens) |
Video
| Compression | H.264 (Baseline), MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 15 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | Backlight compensation (BLC), White Balance, Brightness, Automatic gain control, Automatic exposure, Flickerless |
| Digital Noise Reduction | No |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
Audio
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
Event
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 8.0 or newer |
Interface
| Audio Interface | 3.5mm Phone Jack |
| Local Storage | No |
| Digital Input/Output | 1/1 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 7.68 W (PoE), 6.72 W (DC) |
| Weight | 505g (1.1lb) |
| Dimensions | (W x H x D): 82.6mm x 61.0mm x 135.6mm (3.25" x 2.40" x 5.34") |
| Environmental Casing | Optional housing (IP66) |
| Mount Type | Bracket, Pole Mount, Corner Mount |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
