ACTi - TCM-5601 - 0.31MP Fixed Box IP Camera with 4.2mm Lens
Product Overview

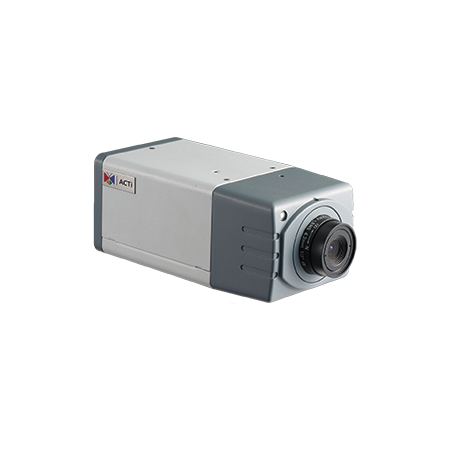

The ACTi TCM-5601 is a fixed box network camera with 0.31MP resolution and a fixed f4.2mm lens. It uses a progressive scan CMOS sensor and is designed for standard-light surveillance applications where a compact box camera format is required.
Key Configuration
Product type: Fixed Box; maximum resolution: 0.31MP; image sensor: Progressive Scan CMOS; sensor size: 1/3"; lens: fixed focal f4.2mm; aperture: F1.8; iris: fixed iris; focus: manual focus.
Key Features
• 0.31MP fixed box camera format
• Progressive Scan CMOS image sensor
• Fixed f4.2mm lens with F1.8 aperture
• DSP-based configurable color-to-B/W switching
• Manual and automatic electronic shutter modes
Technical Context
The camera has a listed minimum illumination of color 0.5 lux at F1.0 and B/W 0.5 lux at F1.0. Day/night operation and a mechanical IR cut filter are not included, while the electronic shutter supports 1/30-1/1000 second in manual mode and 1/5-1/15000 second in automatic mode.
Installation Notes
The fixed box design supports installations where the camera body and lens direction can be manually positioned. Manual focus adjustment allows the image to be tuned during setup for the target viewing distance.
| Product Profile | |
| Product Type | Fixed Box |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| Color to B/W Switch | DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz); 1/5-1/15000 second (auto mode, 60 Hz) |
| Lens | |
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Direction Detection, Vehicle Counting, Automatic License Plate Recognition, Vehicle Speed Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 6.0 or newer |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 5.16 W (DC), 6.24 W (PoE) |
| Weight | 400g (0.88lb) |
| Dimensions | (W x H x D): 67mm x 55mm x 129.5mm (2.64" x 2.17" x 5.10") |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | Camera: CE, FCC, Adapter: CE, TUV-GS, UL, RCM, CCC |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering |
