ACTi - TCM-7011 - 0.31MP Outdoor Fixed Dome with
Product Overview

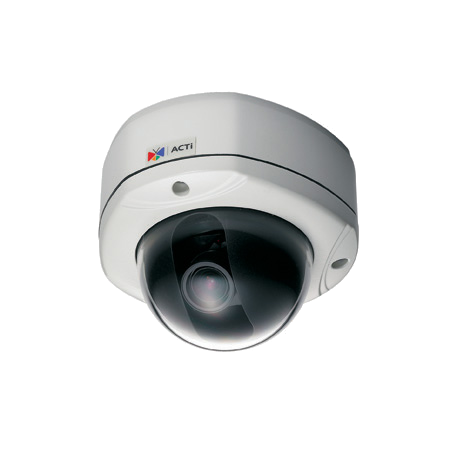

The ACTi TCM-7011 is an outdoor fixed dome camera designed for weather-protected surveillance installations. It features 0.31MP resolution, a 1/3" progressive scan CMOS sensor, and a vari-focal f3.3-12mm lens for adjustable scene coverage.
Key Configuration
Outdoor fixed dome camera; 0.31MP maximum resolution; 1/3" progressive scan CMOS image sensor; f3.3-12mm vari-focal lens; day/night operation; standard low light sensitivity; mechanical IR cut filter; 700-1100nm IR sensitivity range; IP66 weatherproof rating.
Key Features
• 0.31MP outdoor fixed dome camera design
• Vari-focal f3.3-12mm lens for adjustable viewing
• Day/night operation with mechanical IR cut filter
• Color minimum illumination of 0.5 lux at F1.0
• Weatherproof IP66 housing for outdoor installation
Technical Context
The camera uses a progressive scan CMOS sensor and supports color operation at 0.5 lux at F1.0 and black-and-white operation at 0.05 lux at F1.0. Color-to-B/W switching is configurable through CDS sensor based and DSP based switching, while electronic shutter ranges include 1/30-1/1000 second in manual mode and 1/5-1/15000 second in auto mode.
Installation Notes
The IP66 weatherproof dome housing is intended for outdoor camera placement. The vari-focal lens allows installers to adjust the field of view during setup, while the fixed dome form factor provides a protected camera enclosure for exterior surveillance points.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.05 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | CDS sensor based switch, configurable DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Vari-focal, f3.3-12mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Horizontal Viewing Angle | 78.4° - 23.1° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-180°, Rotation: 0°-360° |
| Video | |
| Compression | H.264, MPEG-4, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Direction Detection, Vehicle Counting, Automatic License Plate Recognition, Vehicle Speed Detection, Unattended Object Detection, Crowd Detection, Heat Map |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 7.68 W (PoE) |
| Weight | 1040g (2.29lb) |
| Dimensions | (Ø x H): 151.69mm x 114.9mm (6.0" x 4.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof up to 659.23 KgF (1453.35 lbF) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) for DC 12V, -5°C ~ 50°C (7°F ~ 122°F) for PoE |
| Approvals | CE, FCC, IP66 |
| Warranty | 3 Year(s). For extended warranty offering |
