ACTi - TCM-7411 - 1.3MP with Basic WDR
Product Overview

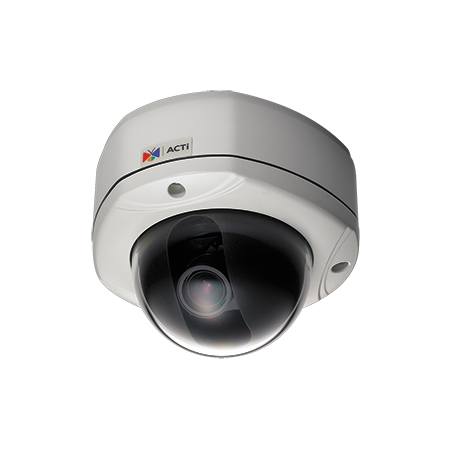

The ACTi TCM-7411 is a 1.3MP outdoor fixed dome camera with Basic WDR for surveillance environments with mixed lighting. It uses a 1/3" progressive scan CMOS sensor and a vari-focal f3.3-12mm lens for adjustable scene coverage.
Key Configuration
Outdoor fixed dome camera; 1.3MP maximum resolution; 1/3" progressive scan CMOS image sensor; f3.3-12mm vari-focal lens; Basic WDR; day/night operation; standard low light sensitivity; mechanical IR cut filter; 700-1100nm IR sensitivity range; IP66 weatherproof housing.
Key Features
• 1.3MP outdoor fixed dome camera design
• Basic WDR for improved visibility in mixed lighting
• Vari-focal f3.3-12mm lens for adjustable field of view
• Day/night operation with mechanical IR cut filter
• Weatherproof IP66 housing for outdoor installation
Technical Context
The camera supports color operation at 0.5 lux at F1.0 and black-and-white operation at 0.05 lux at F1.0. It includes CDS sensor based configurable color-to-B/W switching, an IR working distance of 40m, 900 TVL horizontal resolution, and a 50 dB S/N ratio.
Installation Notes
The IP66-rated dome housing is intended for outdoor use. The vari-focal lens allows installers to adjust the viewing angle during setup, while the fixed dome enclosure provides protected mounting for exterior surveillance points.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 1.3MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE , 2400 K); B/W: 0.05 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR Working Distance | 40m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz), 1/5-1/15000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 900 TVL |
| S/N Ratio | 50 dB |
| Lens | |
| Focal Length | Vari-focal, f3.3-12mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 78.4° - 23.1° |
| Viewing Angle Adjustment | Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350° |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 18 fps at 1280 x 1024 26 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Digital Noise Reduction | No |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.24 W (PoE, heater and fan off), 7.68 W (PoE, fan on), 4.8 W (DC, heater and fan off), 13.68 W (DC, heater and fan on) |
| Weight | 1420g (3.31lb) |
| Dimensions | (Ø x H): 152.00mm x 131.50mm (5.98" x 5.18") |
| Environmental Casing | Weatherproof (IP66), Vandal proof |
| Mount Type | Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
| Fan | Yes |
| Heater | Yes |
| Starting Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) for DC 12V, -5°C ~ 50°C (23°F ~ 122°F) for PoE |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, IP66, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering |
