ACTi - TCM-7811 - 1.3MP with IR LED 40m (0 lux, 30IRE, Max Exposure Gain)
Product Overview

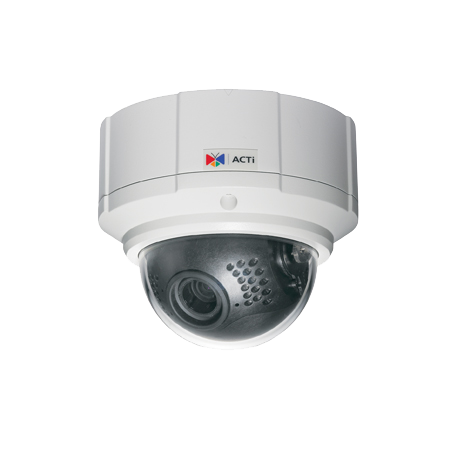

The ACTi TCM-7811 is a 1.3MP outdoor fixed dome camera with IR illumination for day and night surveillance. It uses a 1/3" progressive scan CMOS sensor and an f3.0-9mm vari-focal lens with F1.2 aperture.
Key Configuration
Outdoor fixed dome camera; 1.3MP maximum resolution; 1/3" progressive scan CMOS image sensor; f3.0-9mm vari-focal lens; F1.2 aperture; day/night operation; superior low light sensitivity; mechanical IR cut filter; IR LED with 40m working distance; IP66 weatherproof and IK10 vandal-proof housing.
Key Features
• 1.3MP outdoor fixed dome camera design
• f3.0-9mm vari-focal lens for adjustable scene coverage
• IR LED illumination with 40m working distance
• Day/night operation with mechanical IR cut filter
• IP66 weatherproof and IK10 vandal-proof protection
Technical Context
The camera supports color operation at 0.15 lux at F1.2 and black-and-white operation at 0 lux with IR LED on. It includes 700-1100nm IR sensitivity, CDS and DSP based configurable color-to-B/W switching, 900 TVL horizontal resolution, and a 50 dB S/N ratio.
Installation Notes
The IP66 and IK10-rated dome housing is suited for outdoor installations where weather protection and impact resistance are required. The vari-focal lens allows installers to adjust the field of view during setup.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 1.3MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.15 lux at F1.2 (30 IRE, Max. AGC); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | IR LED |
| IR Working Distance | 40m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch, configurable DSP based switch, configurable |
| Electronic Shutter | 1/60-1/10000 second (manual mode, 60 Hz), 2-1/100000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 900 TVL |
| S/N Ratio | 50 dB |
| Lens | |
| Focal Length | Vari-focal, f3.0-9mm |
| Aperture | F1.2 |
| Iris | DC iris |
| Focus | Manual focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 85.8° - 30.3° |
| Viewing Angle Adjustment | Pan: 0°-350°, Tilt: 10°-90°, Rotation: 0°-350° |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 15 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Digital Noise Reduction | No |
| Image Orientation | Flip, Mirror |
| Image Enhancement | Backlight compensation (BLC), Brightness, Automatic exposure, Automatic exposure, Flickerless |
| Text Overlay | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.96 W (PoE) |
| Weight | 1420g (3.13lb) |
| Dimensions | (Ø x H): 152.00mm x 131.50mm (5.98" x 5.18") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Mount Type | Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
| Starting Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, IP66, IK10, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering |
