In a video surveillance deployment, especially with hundreds or thousands of cameras monitoring vast areas, it is ideal for the control center to employ a TV Wall display system. ACTi TV Wall offers the control center with excellent overview monitoring and provides high video quality with finest details. With ACTi TV Wall, the system operator no longer needs to scale down video resolution or switch between layouts on one screen. It enables multiple views to be displayed on different monitors at the same time, supporting up to unlimited channels, driving higher operational efficiency so that no critical moment goes out of sight.
• True Value: Deliver the true value of high megapixel cameras for exceptional detail visibility.
• Multi-Monitor Support: Supports 4 multiple monitors, enhancing viewing capabilities for operators.
• Channel Capacity: Supports up to 64 channels, allowing extensive monitoring without degradation in quality.
• Flexible Layouts: Offers various layout options: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, and custom layouts for tailored viewing experiences.
• Adjustable Management: Flexible TV Wall server layout management, with adjustable size and position to fit various operational requirements.
| Product Profile | |
|---|---|

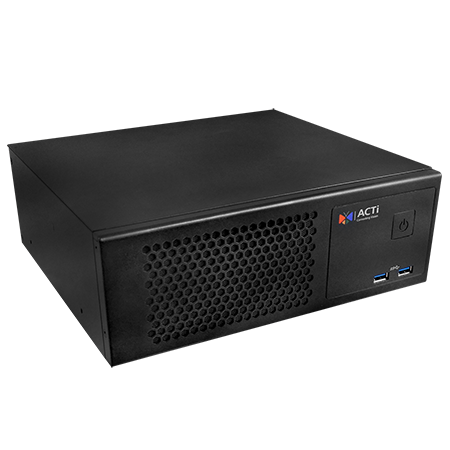

| Product Type | Standalone TV Wall |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum number of Monitors | 4 |
| Hardware | |
| CPU | Intel Core i7-6700TE |
| RAM | 8GB, DDR4, 2133MT/s |
| Graphics Card or GPU | NVIDIA GeForce GTX1650 |
| License | |
| License required | No |
| Live View | |
| Maximum display layout | 64 (per monitor) |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
| Local Display performance | 1 monitor: recommended total up to 64 channels 2 monitors: recommended total up to 60 channels 3 monitors: recommended total up to 48 channels 4 monitors: recommended total up to 33 channels *The performance was tested on the camera settings: 640 x 480 15 fps H.264 (Bit Rate: 1Mbps)/ MJPEG (Quality: 60) *The display performance may vary depending on camera settings, the number of channels, current layout, CPU performance and internet infrastructure |
| Map | |
| e-Map | Yes |
| Google Map | Yes |
| Video | |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Hardware Accelerated Decoding | H.264, H.265 |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-out |
| Network | |
| Ethernet Port | Total ports: 2 port(s) Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
| System | |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016 |
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 3.0 |
| Integration | |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS) |
| Storage | |
| System Drive | SSD, 120GB |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 2.5" |
| Interface | |
| External Storage Interface | USB |
| Local Access | USB keyboard & mouse |
| Local Display Interface | [With Dedicated Graphics Card] HDMI x 1, Display Port x 1, DVI x 1 [With Onboard Graphics] HDMI x 1, Display Port x 1, DVI x 1 |
| General | |
| Power Source | AC 100-240V |
| Power Consumption | 250 W (AC) |
| Weight | 3279g (7.229lb) |
| Dimensions | (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1") |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, UL (for built-in power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * To be available through future firmware upgrade |
