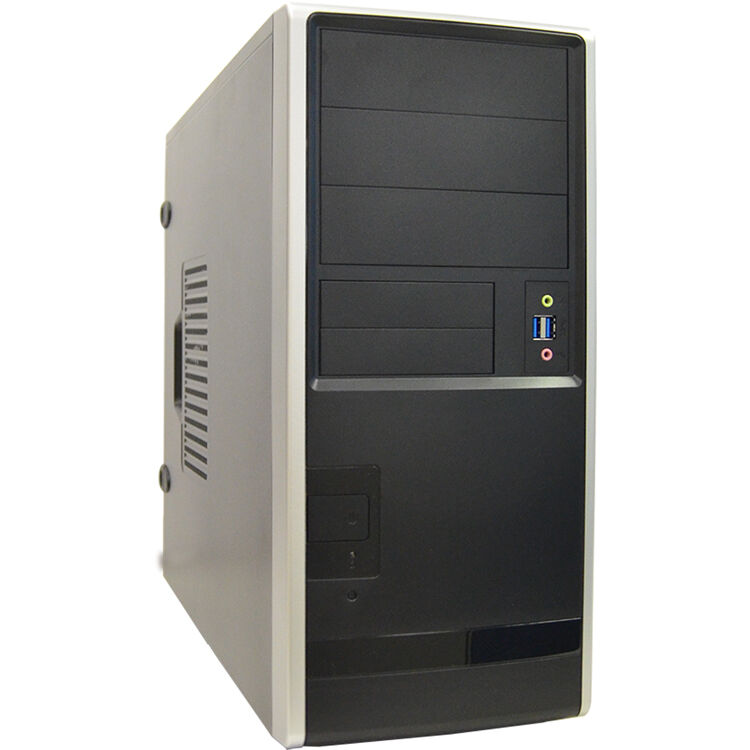

ACTi - TVW-301 - 4-Monitor Tower Standalone TV Wall
Part number:
TVW-301
Price:
4-Monitor Tower Standalone TV Wall
Features:
- 2-bay Tower Standalone TV Wall
- Location-based management with e-Map
- Intel Core i7-10700K, 16GB
- Independent Graphics Card
| Device | |
| Product Type | Standalone TV Wall |
| Maximum number of Monitors | 4 |
| Hardware | |
| CPU | Intel Core i7-10700K |
| RAM | 16GB |
| Graphics Card or GPU | ZOTAC GAMING GeForce GTX 1650(ZT-T16520H-10L) x 2 |
| License | |
| License required | No |
| Live View | |
| Maximum display layout | 64 (per monitor) |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
| Local Display performance | 1 monitor: recommended total up to 64 channels (720P/15fps, 480P/15fps), 53 channels (720P/30fps), 43 channels (1080P/15fps), 23 channels (1080P/30fps) |
| 2 monitors: recommended total up to 128 channels (720P/15fps, 480P/15fps), 106 channels (720P/30fps), 86 channels (1080P/15fps), 46 channels (1080P/30fps) | |
| 4 monitors: recommended total up to 128 channels (1080P/15fps), 96 channels (720P/30fps), 84 channels (1080P/15fps), 44 channels (1080P/30fps) | |
| *The performance was tested on the camera settings: H.264 3Mbps | |
| *Recommended one monitor per graphic card via HDMI/DVI/DP, maximum two graphic cards per TV Wall Server | |
| *The display performance may vary depending on camera settings, the number of channels, current layout, CPU performance and internet infrastructure | |
| Map | |
| e-Map | Yes |
| Google Map | Yes |
| Video | |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Hardware Accelerated Decoding | H.264, H.265 |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Network | |
| Ethernet Port | 1 x Ethernet (2.5GBASE-T), RJ-45 connector |
| 1 x Ethernet (1000 Base-T), RJ-45 connector | |
| System | |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016 |
| Server Operating System | Windows 10 Pro |
| USB | 4-Port USB 3.0, 3-Port USB 3.1 |
| Integration | |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O |
| Storage | |
| System Drive | SSD, 256GB |
| Storage Bay | SATA, Max. 2 Disk(s) (1 bay is occupied by system HDD) |
| HDD Size | 3.5" |
| RAID Level | No |
| Interface | |
| Expansion Slots Available | 1 x PCIe 3.0 (x1) |
| 1 x PCIe 3.0 (x4) | |
| Local Access | USB keyboard & mouse |
| Local Display Interface | [With Dedicated Graphics Card] HDMI x 2 DVI x 2, Display Port x 2 |
| [With Onboard Graphics] HDMI x 1 DVI x 1, Display Port x 1 | |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 850W |
| Weight | 9643g (21.26lb) |
| Dimensions | (W x H x D): 190mm x 416mm x 485mm (7.48" x 16.38" x 19.09") |
| Bundled Accessories | Power cord |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
