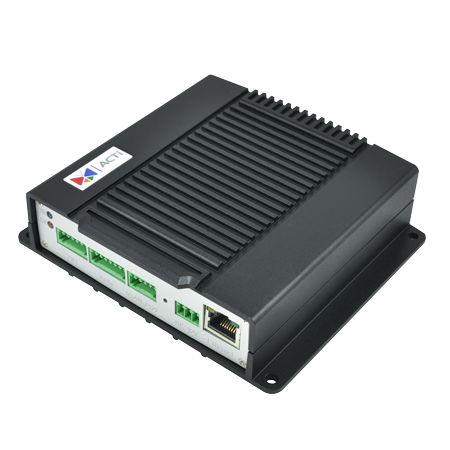

ACTi - V24 - 4-Channel 960H/D1 H.264 Extended Temperature Video Encoder
Part number:
V24
Price:
4-Channel 960H/D1 H.264 Extended Temperature Video Encoder with, BNC Video Input, RJ-45 Video Output, Audio, MicroSDHC/MicroSDXC, RS-485, RS-422, DI/DO, PoE/DC12V.
Features:
- 4 X CVBS, BNC connector
- Web Client, Mobile Client
- Event trigger, response and notification
| Device | |
| Product Type | Video Encoder |
| Maximum Number of Cameras | 4 |
| PTZ |
| PTZ Control | Remote manual control, 32 preset points |
| Pan, Tilt or Zoom protocol | Pelco-D, Pelco-P V2, Dynacolor |
| Video |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 960 x 480 25 fps at 960 x 576 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | Brightness, Saturation, Contrast, Sharpness |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, People Counting, Object Enter Area Detection, Missing Object Detection, Crowd Detection, Vehicle Counting, Heat Map, Automatic License Plate Recognition, Vehicle Speed Detection, Direction Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding, G.711 |
| Network |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control, Anonymous login |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Video loss, Video Recovery, Scheduler, Storage removed, Failed to write storage, System is going to reboot, System booted successfully, |
| Event Response | Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to local storage, Upload video or snapshot to FTP server, Activate external device through digital output, Change motion detection profile |
| System |
| Client PC Operating System | Windows 8.1, Windows 7 SP1, Windows Server 2008 R2 SP1 |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, iPad, Android device |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Apple Safari |
| Interface |
| Serial Port | 1, RS-485/RS-422, Terminal block |
| Audio Interface | 4/1, Terminal block |
| Analog Video Input | 4 X CVBS, BNC connector |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 4 (DI/DO configurable), Terminal block |
| General |
| Power Source | DC 7-20V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 3.48 W (DC), 3.84 W (PoE) |
| Weight | 462g (1.021lb) |
| Dimensions | (W x H x D): 137mm x 35.5mm x 121.8mm (5.4" x 1.4" x 4.8") |
| Environmental Casing | Vibration proof (NEMA TS2-ready, without certificate) |
| Mount Type | Surface |
| Starting Temperature | -40°C ~ 76°C (-40°F ~ 168.8°F) |
| Operating Temperature | -40°C ~ 76°C (-40°F ~ 168.8°F) |
| Operating Humidity | 10% - 85% RH |
| Remote Access | Web Client, Mobile Client |
| Approvals | CE Class B, FCC Class B, NEMA TS2-Ready (without certificate), UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
