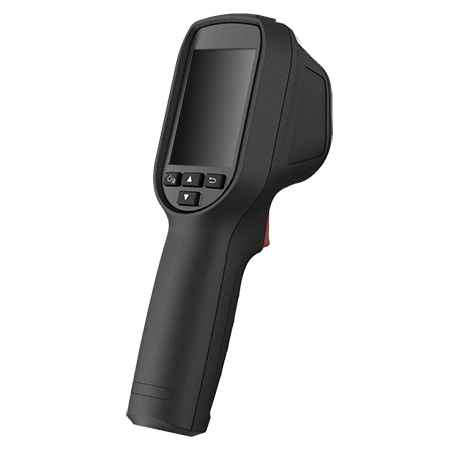

ACTI - VMGB-150 - Handheld Metadata Camera with Built-in Human Temperature Detection
Part number:
VMGB-150
Price:
Handheld Metadata Camera with Built-in Human Temperature Detection.
Features:
- Human Temperature Detection
- 2.4" LCD Color LCD Display
| Device | |
| Product Type | Metadata Camera |
| Product Application | Human Temperature Detection |
| Image Sensor | Thermal |
| Spectral Range | 8-14μm |
| Thermal Sensitivity | NETD <40mK at F1.0 |
| Spatial Resolution | 5.48 mrad |
| LCD Screen | 2.4" Color LCD Display; Resolution: 320 x 240 |
| Lens |
| Focal Length | Fixed focal, f3.1mm |
| Aperture | F1.1 |
| Horizontal Viewing Angle | 37.2° |
| Vertical Viewing Angle | 50° |
| Video |
| Built-in Analytics | Human Temperature Detection |
| Temperature Measurement |
| Temperature Range | 30°C ~ 45°C (86°F ~ 113°F) |
| Temperature Accuracy | ±0.5°C |
| Interface |
| Local Storage | MicroSD memory card slot (8GB included, up to 128GB) |
| General |
| Power Source | 0.4 A, DC 3.7V |
| Power Consumption | 1.2 W (DC) |
| Weight | 285.5g (0.629lb) |
| Dimensions | (W x H x D): 59mm x 196mm x 117mm (2.32" x 7.72" x 4.61") |
| Environmental Casing | Weather resistant (IP54) |
| Bundled Accessories | Power Adapter, USB cable, Rechargeable Li-ion Battery, Memory Card (8GB) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
