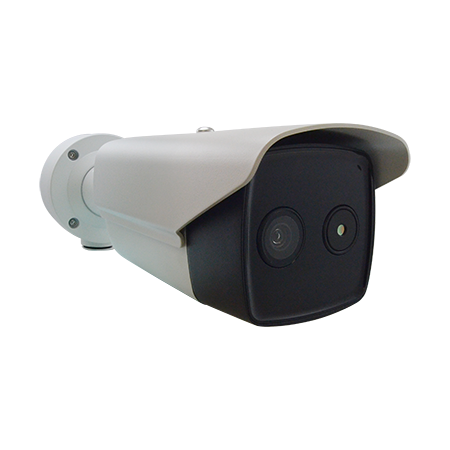

ACTI - VMGB-370 - 4MP Metadata Camera with Day/Night, IR LED, Built-in Human Temperature Detection
Part number:
VMGB-370
Price:
4MP Metadata Camera with Day/Night, IR LED, Built-in Human Temperature Detection.
Features:
- 4 Megapixel Thermal and Optical Metadata Camera
- Day & Night with IR LED
- Human Temperature Detection
- Event trigger, response and notification
| Device | |
| Product Type | Metadata Camera |
| Maximum Resolution | 4MP |
| Product Application | Human Temperature Detection |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7 " |
| Effective Pixels | Thermal: 160(H) X 120(V) Optical: 2688(H) X 1520(V) |
| Spectral Range | 8-14μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 5.48 mrad |
| Day / Night | Yes |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| Lens |
| Number of Lenses | 2 Lenses |
| Focal Length | (Thermal camera) Fixed focal, f3.1mm (Visual camera) Fixed focal, f4.0mm |
| Horizontal Viewing Angle | (Thermal camera) 50° (Visual camera) 84° |
| Vertical Viewing Angle | (Thermal camera) 37.2° (Visual camera) 44.8° |
| Video |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (60Hz) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 352 x 240 30 fps at 176 x 120 (50Hz) 25 fps at 2688 x 1520 25 fps at 1920 x 1080 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 352 x 288 25 fps at 176 x 144 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Human Temperature Detection |
| Audio |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | PCM, G.711 u-law, G.711 A-law, G.722.1, G.726, MP2L2 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Temperature Measurement |
| Temperature Range | 30°C ~ 45°C (86°F ~ 113°F) |
| Temperature Accuracy | ±0.5°C |
| Event |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Temperature Exception Detection (up to 10 points, 10 areas and 1 line) |
| Event Response | E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System |
| Language | Multi-Language |
| Interface |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB, Kingston or Sandisk only) |
| Digital Input/Output | 2/2 |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 7.5 W (DC), 8 W (PoE) |
| Weight | 1760g (3.88lb) |
| Dimensions | (W x H x D): 113.5mm x 115.2mm x 358.3mm (4.47" x 4.35" x 14.10") |
| Environmental Casing | Weatherproof (IP66) |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Humidity | 10% - 95% RH |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
