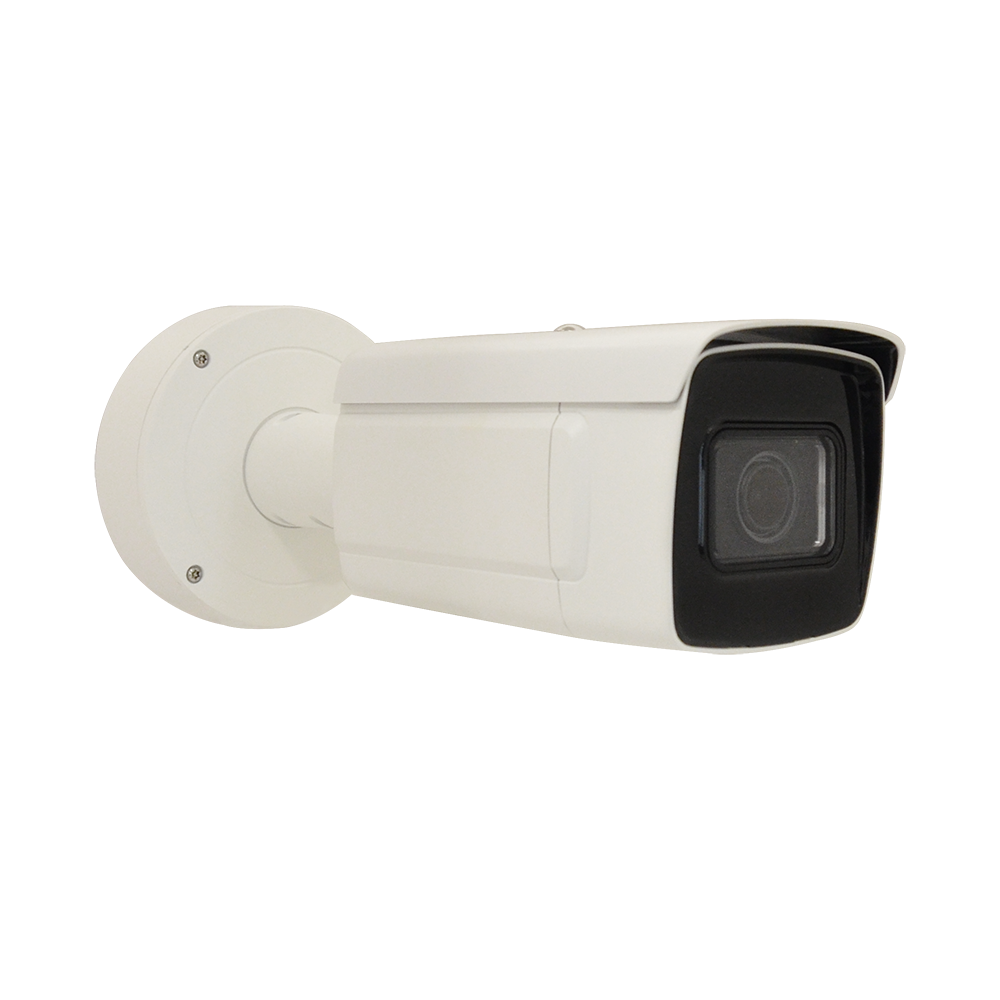

ACTI - VMGB-410 - 2MP Automatic License Plate Recognition Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom Lens
Part number:
VMGB-410
Price:
2MP ALPR Metadata Camera with 4.3x Zoom lens, f2.8-12mm/F1.2-2.5 (HOV:114.5°-41.8°), P-Iris, H.265/H.264, 3D DNR, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10 (metal casing), DI/DO, Built-in Analytics.
Features:
- Automatic License Plate Recognition
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Zoom Bullet |
| Maximum Resolution | 2MP |
| Product Application | Automatic License Plate Recognition |
| Application Environment | Outdoor |
| Description | Wide Angle Camera Built-in Deep learning-based ALPR with working for car speed <60km/h. (Available for cars in Taiwan) |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.2-F2.5 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 114.5° - 41.8° |
| Vertical Viewing Angle | 59.3° - 23.6° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1280 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous 5 streams |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | White Balance, Saturation, Brightness, Contrast, Sharpness, Automatic gain control, Backlight compensation (BLC), Defogging, Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 3D DNR |
| Privacy Mask | Yes |
| Built-in Analytics | Automatic License Plate Recognition, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Vehicle Intrusion Detection, Vehicle Color Detection, Vehicle Type Detection, Tampering Detection |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, ARP, UPnP, Bonjour, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Detection Range |
| Observation Range | Detection: 45m-111.8m Recognition: 9m-60m Identification: 4.5m-30m |
| Event |
| Event Trigger | Video motion detection, External device through digital input, Intelligent event detection, Disk full, Disk not found |
| Event Response | Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System |
| Language | Multi-Language, English, Traditional Chinese |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Supported Countries | Taiwan |
| Interface |
| Analog Video Output | 1 x CVBS, Composite output, for installation only |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (bundled 64GB SD card; support for up to 256GB) |
| Digital Input/Output | 2/2 |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE Class 4 (IEEE802.3at) |
| Power Consumption | 14.28 W (DC), 16.8 W (PoE) |
| Dimensions | (Ø x L): 144mm x 347mm (5.7" x 13.7") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Heater | Yes |
| Starting Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
