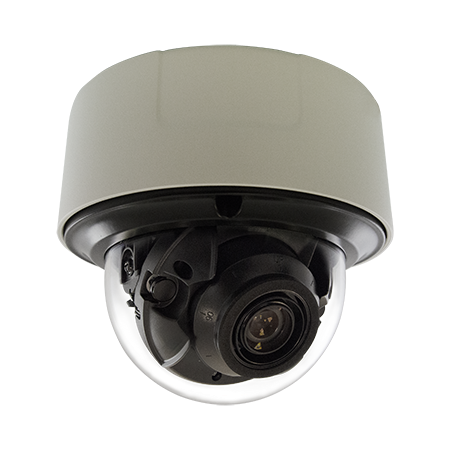

ACTI - VMGB-606 - 4MP Face Recognition Metadata Camera with 4.3x Zoom lens, f2.8-12mm/F1.2-2.5 (HOV:114.5°-41.8°), P-Iris, H.265/H.264, 3D DNR, Built-in Microphone, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V/AC24V, IK10, DI/DO, RS-485, Built-in Analyti
Part number:
VMGB-606
Price:
4MP Face Recognition Metadata Camera with 4.3x Zoom lens, f2.8-12mm/F1.2-2.5 (HOV:114.5°-41.8°), P-Iris, H.265/H.264, 3D DNR, Built-in Microphone, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V/AC24V, IK10, DI/DO, RS-485, Built-in Analytics.
Features:
- Face Recognition
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Zoom Dome |
| Maximum Resolution | 4MP |
| Product Application | Face Recognition |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0.0001 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 30m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.2-F2.5 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 114.5° - 41.8° |
| Vertical Viewing Angle | 59.3° - 23.6° |
| Viewing Angle Adjustment | Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 2560 x 1440 60 fps at 1920 x 1080 60 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous 5 streams |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | White Balance, Saturation, Brightness, Contrast, Sharpness, Automatic gain control, Backlight compensation (BLC), Defogging, Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 3D DNR |
| Privacy Mask | Yes |
| Built-in Analytics | Face Detection, People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Intrusion Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Vehicle Intrusion Detection, Face Recognition |
| Audio |
| Audio Type | 2-way, Built-in Microphone, Stereo Line-in, Line-out |
| Audio Compression | G.711, G.722.1, G.726, PCM, MP2L2, AAC, MP3 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, ARP, UPnP, Bonjour, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Video Analytics |
| Analysis Source Type | Video |
| Metadata Accuracy | Excellent |
| Maximum detectable number of face or person | 30 faces per frame (Recommendation) |
| Face Rotation | ±60° (horizontal), ±30° (vertical) |
| Detection Range |
| Observation Range | Detection: 60m-149m Recognition: 12m-29.8m Identification: 6m-14.9m |
| Event |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Intelligent event detection, Disk full, Disk not found |
| Event Response | Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System |
| Language | Multi-Language, English, Traditional Chinese |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Storage |
| User Database | Face Picture Capacity: 150,000 |
| Interface |
| Serial Port | 1 x RS-485 |
| Audio Interface | Built-in microphone, 1/1, 3.5mm Phone Jack |
| Analog Video Output | 1 x CVBS, Composite output, for installation only |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (bundled 64GB SD card; support for up to 256GB) |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, AC 24V, PoE Class 4 (IEEE802.3at) |
| Power Consumption | 12.4 W (DC), 12.5 W (PoE) |
| Dimensions | (Ø x L): 140.5mm x 122.6mm (5.5" x 4.8") |
| Environmental Casing | Vandal proof (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
