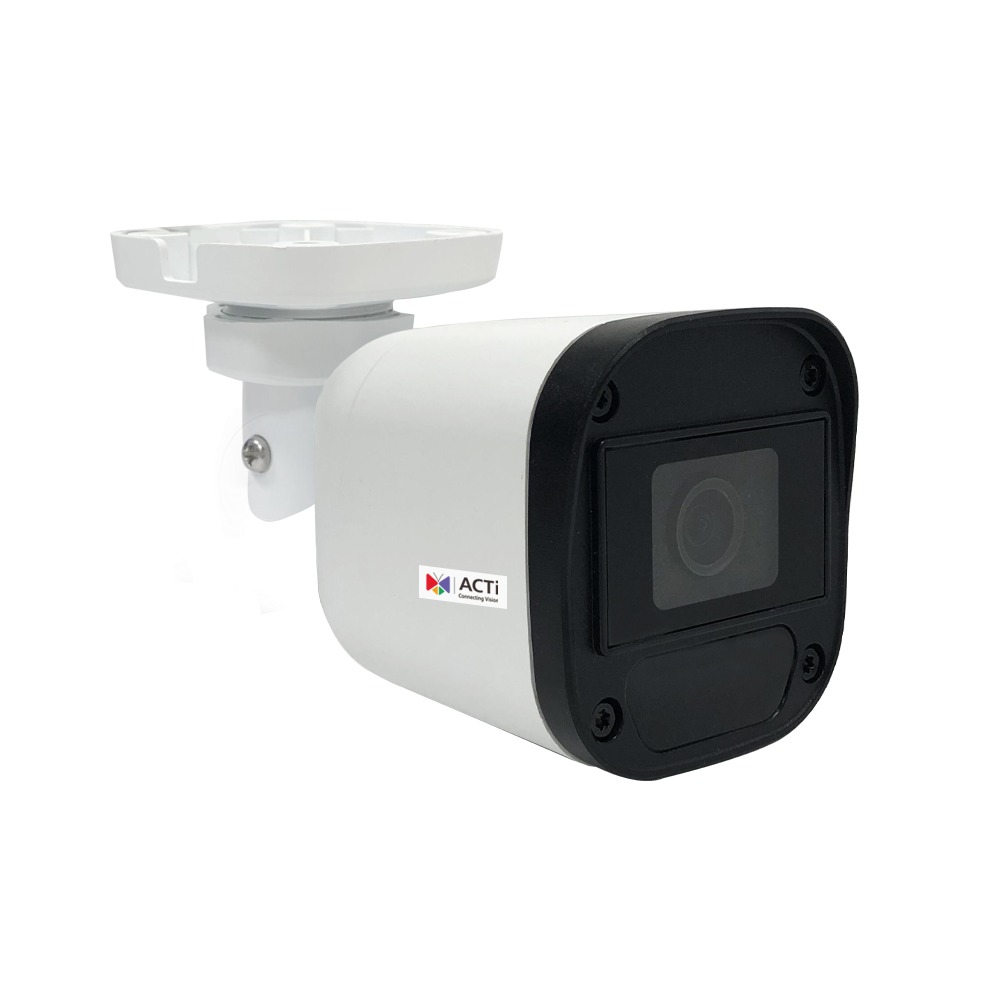

ACTI - Y31 - 2MP Analog Mini Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f2.8mm/F2.0 (HOV:90.5°), TVI/AHD/CVI/CVBS, DNR, DC12V, IP67
ACTI - Y31 - 2MP Analog Mini Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f2.8mm/F2.0 (HOV:90.5°), TVI/AHD/CVI/CVBS, DNR, DC12V, IP67
ACTI - Y31 - 2MP Analog Mini Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f2.8mm/F2.0 (HOV:90.5°), TVI/AHD/CVI/CVBS, DNR, DC12V, IP67

ACTI - Y31 - 2MP Analog Mini Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f2.8mm/F2.0 (HOV:90.5°), TVI/AHD/CVI/CVBS, DNR, DC12V, IP67

Part number:
Y31
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

2MP Analog Mini Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, Fixed lens, f2.8mm/F2.0 (HOV:90.5°), TVI/AHD/CVI/CVBS, DNR, DC12V, IP67



Features:

  • 2 Megapixel
  • Fixed Lens with f2.8mm/F2.0
  • Extreme WDR
  • Wide Angle
Device-
Product TypeAnalog Mini Bullet
Maximum Resolution2MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/3 "
Day / NightYes
Low Light SensitivityExtreme
Minimum IlluminationColor: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on)
Mechanical IR Cut FilterYes
IR Working Distance30m
Electronic Shutter1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL)
Lens-
Focal LengthFixed focal, f2.8mm
ApertureF2.0
IrisFixed iris
FocusFixed focus
Lens MountBoard mount
Horizontal Viewing Angle90.5°
Vertical Viewing Angle49.6°
Video-
Maximum Frame Rate vs. Resolution(TVI/AHD/CVI)
30 fps at 1920 x 1080
(CVBS)
NTSC, PAL
Wide Dynamic RangeExtreme WDR (130 dB)
Image EnhancementWhite Balance
Digital Noise ReductionDNR
Image OrientationFlip
Network-
Ethernet PortNo
Interface-
Analog Video Output1 x BNC connector, supports TVI/AHD/CVI/CVBS
General-
Power SourceDC 12V (adapter not included), plug size 2.1x5.5mm
Weight135g (0.30lb)
Dimensions(L x W x H): 142mm x 63mm x 65mm (5.59" x 2.48" x 2.56")
Environmental CasingWeatherproof (IP67)
Mount TypePole Mount, Corner Mount
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity≤90% RH
Surge Protection4KV
ApprovalsCE Class B, FCC Class B, IP67
MaterialPlastic
Real-time Clock (RTC)No
Warranty2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Dimension Diagram
0.6mb
