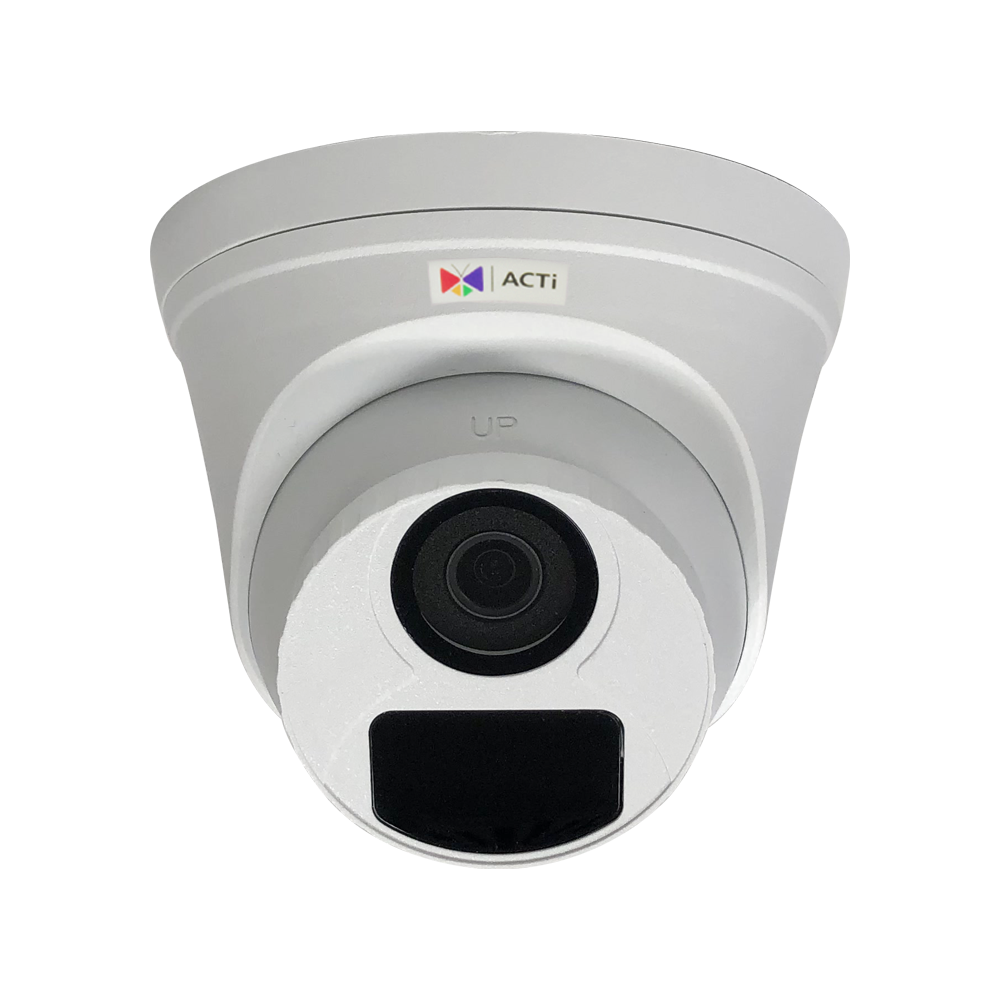

ACTI - Y72 - 5MP Outdoor Analog Dome with D/N, 2.8mm
Part number:
Y72
Price:
ACTi Y72 is a 5MP outdoor analog dome camera with a fixed 2.8mm F2.0 lens. It supports TVI, AHD, CVI, and CVBS analog video outputs. The camera provides Extreme WDR, adaptive IR, day/night functionality, digital noise reduction (DNR), and IP67 weatherproof protection.
| Device Overview | |
|---|---|
| Maximum Resolution | 5MP |
| Application Environment | Outdoor |
| Image Sensor | |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Working Distance | 30 m |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
| Lens | |
| Focal Length | Fixed focal, f2.8 mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 102.2° |
| Vertical Viewing Angle | 53.9° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Maximum Frame Rate vs. Resolution (TVI/AHD) | 20 fps at 2592 x 1944 (CVI) 25 fps at 2880 x 1620 (CVBS) NTSC, PAL |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance |
| Digital Noise Reduction | DNR |
| Image Orientation | Flip |
| Network | |
| Ethernet Port | No |
| Interface | |
| Analog Video Output | 1 x BNC connector, supports TVI/AHD/CVI/CVBS |
| General | |
| Power Source | DC 12V (adapter not included), plug size 2.1×5.5 mm |
| Weight | 182 g (0.401 lb) |
| Dimensions (Ø × H) | 118 mm × 96 mm (4.65" × 3.78") |
| Environmental Casing | Weatherproof (IP67) |
| Mount Type | Pole Mount, Pendant, Corner Mount |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤ 90% RH |
| Surge Protection | 4 KV |
| Approvals | CE Class B, FCC Class B, IP67 |
| Material | Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s) |
