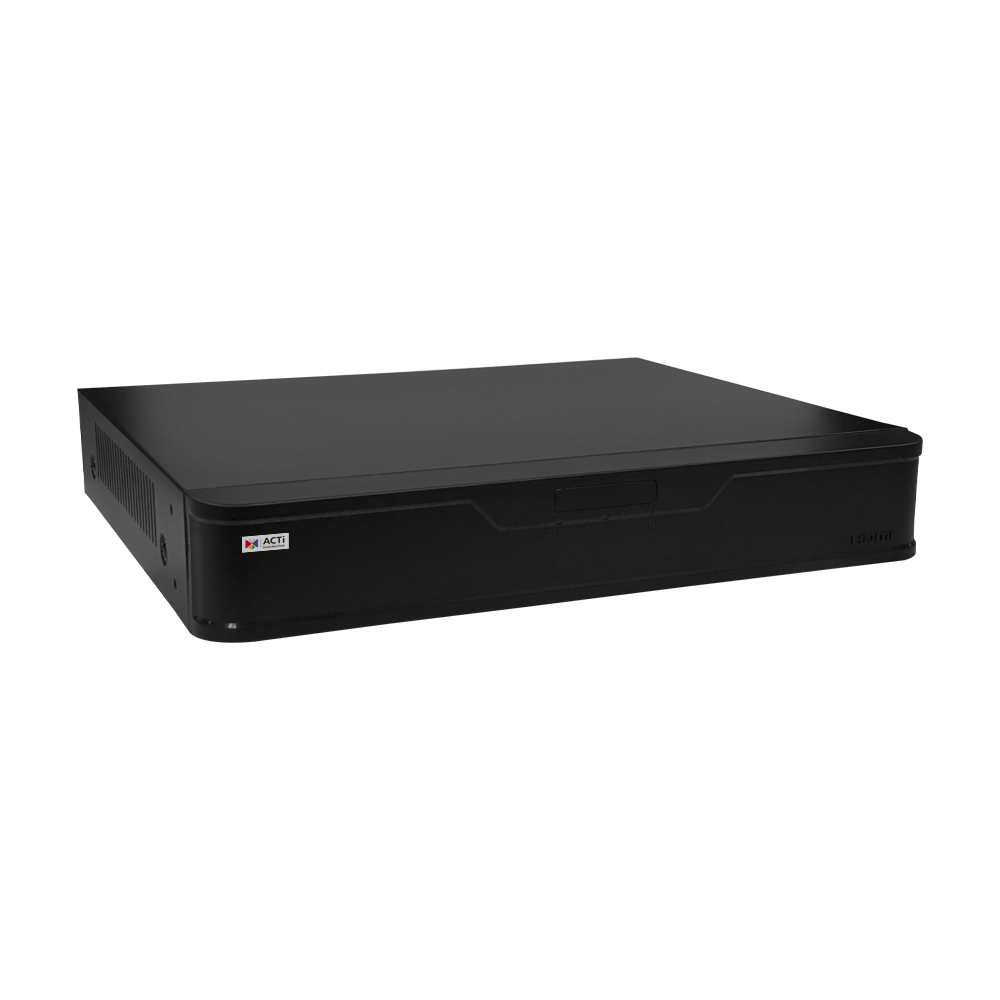

6-Channel (4 Analog + 2 IP) 1-Bay H.265 Mini Standalone Hybrid DVR with Recording Throughput 16 Mbps, Supporting video source from TVI, AHD, CVI, CVBS and IP camera, HDMI and VGA Port, Remote Access, 4-Channel Synchronized Playback, free license included for maximum 4-channel Analog Camera and maximum 2-channel IP Camera, 1-Bay (Storage Disks not included), Audio, DC 12V.
| Product Profile | |
|---|---|
| Product Type | Standalone Hybrid DVR |
| Maximum Number of Video Devices | 6 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI/VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| License | |
| License required | No |
| Free License | 4 (for Analog cameras) 2 (for IP video devices, up to 6-ch if no analog cameras are connected.) |
| Video | |
| Compression | H.265, H.264 |
| Maximum Frame Rate vs. Resolution | (TVI/AHD/CVI) 20 fps at 5MP 30 fps at 4MP 30 fps at 1080P 60 fps at 720P |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 u-law |
| Network | |
| Network Protocol & Service | IP, TCP, DHCP, HTTP, HTTPS, DNS, DDNS, RTSP, SMTP, UPnP |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 48 Mbps |
| Recording | |
| Maximum Recording Throughput | 16 Mbps |
| Event | |
| Event Trigger | [Video Device]: Video motion detection, IP address conflict, Network loss. [Local Server]: Disk full, Failed to write storage, Low disk space |
| Event Response | Play alert sound, Send E-mail Notification, Pop-up window |
| System | |
| Server Operating System | Linux |
| USB | 2-Port USB 2.0 |
| Integration | |
| ONVIF Compliant | Yes, Profile S |
| Storage | |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 2.5", 3.5" |
| Maximum Recording Capacity | 20TB x1 |
| Interface | |
| Audio Interface | 1/1, RCA Jack |
| Analog Video Input | 4 X BNC connector, supports TVI/AHD/CVI/CVBS |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| Power Source | DC 12V |
| Power Supply | 40W |
| Weight | 1100g (2.42lb) |
| Dimensions (W x H x D) | 260mm x 47mm x 226mm (10.2" x 1.8" x 8.9") |
| Bundled Accessories | USB Mouse, Power Adapter |
| Fan | No |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Remote Access | Web Client |
| Approvals | CE Class A, FCC Class A, BSMI, UL Listed |
| Color | Black |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s) |
