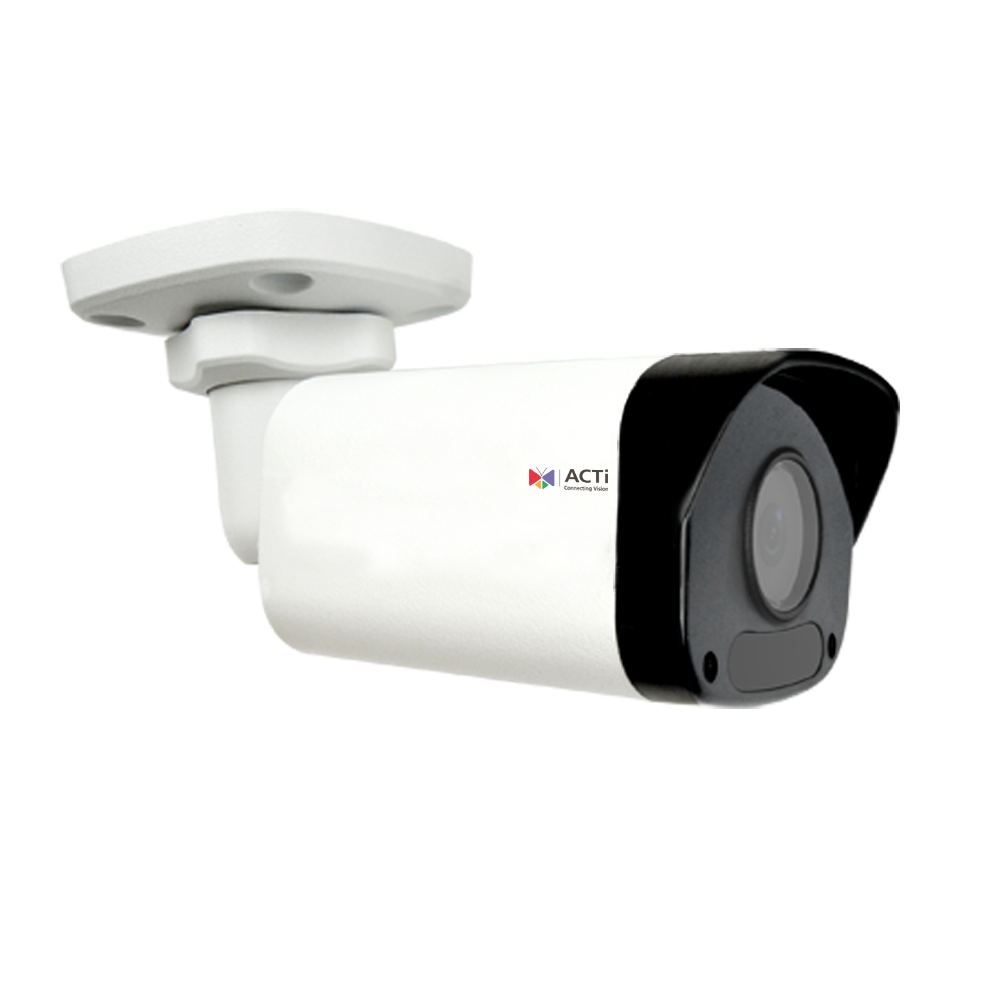

Acti - Z31 - 4MP Mini Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
Part number:
Z31
Price:
4MP Mini Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and
- Adaptive IR LED
- Fixed Lens with f3.6mm/F1.8
- Extreme WDR
- H.265 Compression
- Event trigger, response and notification
| Product Type | Mini Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Effective Pixels | 2688(H) X 1520(V) (4.09 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.02 lux; B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1150nm |
| IR LED | Adaptive IR LED x 15 (850 nm) |
| IR Working Distance | 30m |
| Electronic Shutter | 1/6-1/100000 second (manual mode); 1/6-1/100000 second (auto mode) |
| S/N Ratio | 55 dB |
Lens
| Focal Length | Fixed focal, f3.6mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 76.8° |
| Vertical Viewing Angle | 65.3° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 25 fps at 2560 x 1440 30 fps at 2048 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 560 30 fps at 704 x 288 30 fps at 640 x 360 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Enhancement | Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Object Based Motion Detection, Tampering Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
Network
| Ethernet Port | 1 x RJ-45 pigtail connector |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection |
Event Response Integration | E-mail notification with snapshots, Upload snapshot to FTP server |
| ONVIF Compliant | Yes, Profile S |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.4 W (PoE) |
| Weight | 450g (0.99lb) |
| Dimensions | (W x H x D): 63mm x 62.4mm x 157.3mm (2.5" x 2.5" x 6.2") |
| Environmental Casing | Weatherproof (IP67) |
| Bundled Accessories | Integrated bracket |
| Mount Type | Wall Mount, Ceiling Bracket |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Approvals | CE, FCC, EAC, IP67 |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
