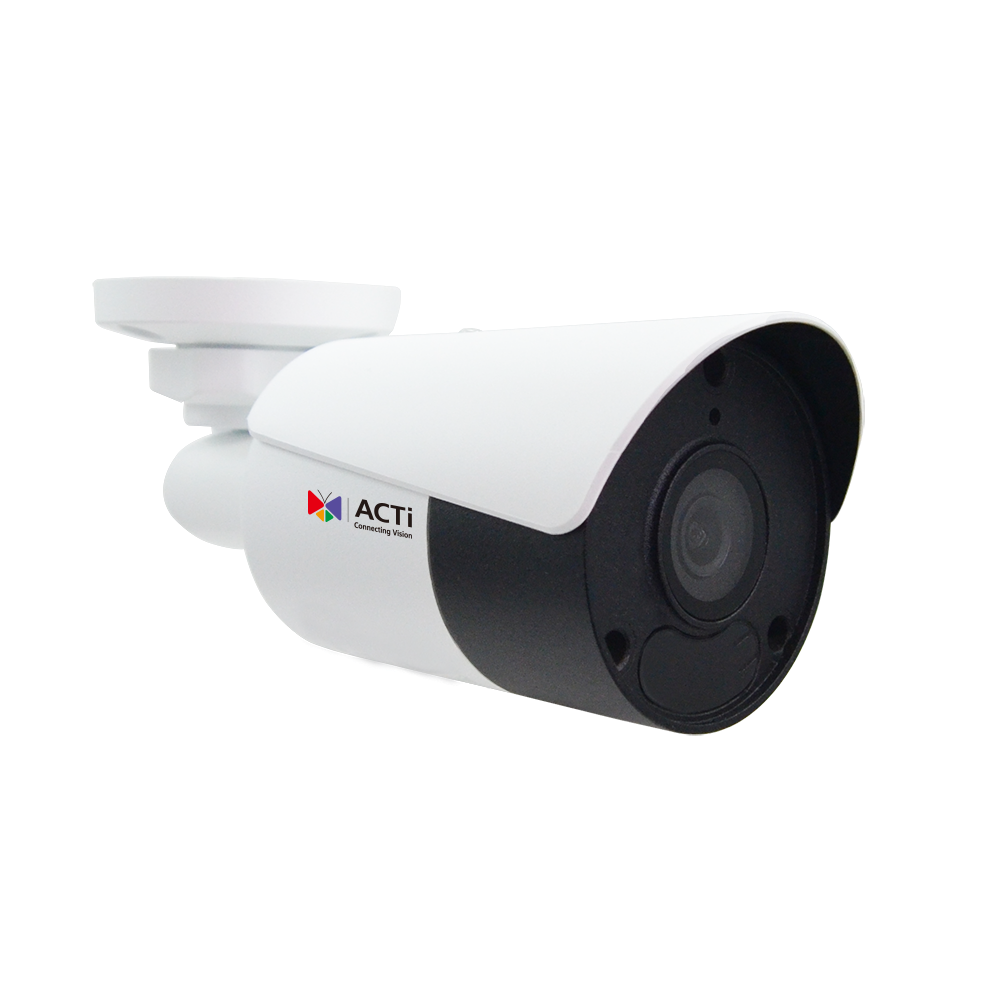

ACTi - Z315 - 5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens
Part number:
Z315
Price:
5MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens, f2.8mm/F1.6 (HOV:112.9°), H.265/H.264, 2D+3D DNR, Built-in Microphone, MicroSD, PoE/DC12V, IP68
Features:
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Superior WDR
- Super wide angle
- Built-in Analytics
- Event trigger, response and notification
| Device | - |
| Product Type | Mini Bullet |
| Maximum Resolution | 5MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 50m |
| S/N Ratio | 75 dB |
| Lens | - |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Horizontal Viewing Angle | 112.9° |
| Vertical Viewing Angle | 59.1° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | - |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2880 x 1620 |
| 25 fps at 2560 x 1440 | |
| 30 fps at 2304 x 1296 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 720 x 576 | |
| 30 fps at 640 x 360 | |
| Multi-Streaming | Simultaneous dual streams |
| Bit Rate | 128Kbps - 16Mbps (per stream) |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Built-in Analytics | People Detection, Vehicle Detection, Tampering Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio | - |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | - |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Event | - |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration | - |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | - |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Operating Button | No |
| General | - |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 6 W (PoE) |
| Weight | 430g (0.95lb) |
| Dimensions | (L x W x H): 190mm x 73mm x 71mm (7.5" x 2.9" x 2.8") |
| Environmental Casing | Weatherproof (IP68) |
| Mount Type | Pole Mount |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE, FCC Class B, IP68, UL Listed |
| Color | White |
| Real-time Clock (RTC) | No |
