- • 2 Megapixel
- • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- • Fixed Lens with f2.8mm/F2.0
- • Superior WDR
- • H.265 Compression
| Camera Overview | |
|---|---|

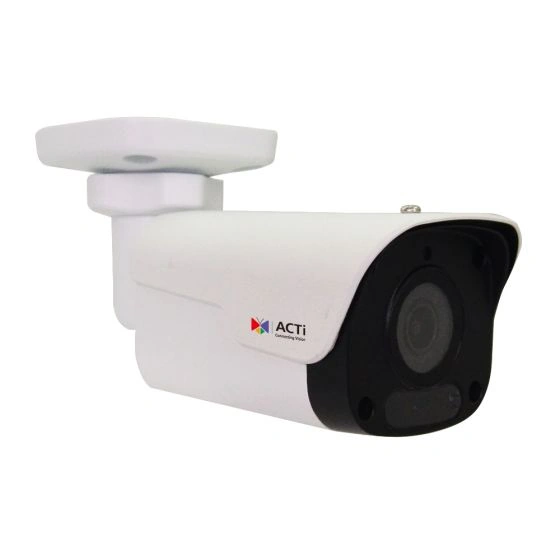

| Type | Fixed Bullet Type |
| Application Environment | Outdoor |
| Maximum Resolution | 2 Megapixels |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Image Performance | |
| Day/Night Mode | Yes |
| Ultra-Low Illumination | Excellent |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.003 lux at F2.0 (AGC on); Black/White: 0 Lux (IR LED on) |
| Mechanical IR Filter Switch | Yes |
| IR LED | Adaptive IR LED x 1 (850 nm) |
| IR Illumination Distance | 50 meters |
| Electronic Shutter | 1-1/100000 sec (Manual Mode); 1-1/100000 sec (Auto Mode) |
| Signal-to-Noise Ratio | 75 dB |
| Lens Specifications | |
| Focal Length | Fixed, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed Aperture |
| Focus | Fixed Focus |
| Lens Mount | Onboard |
| Horizontal Viewing Angle | 108.6° 62.7° |
| View Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Alternate: 0°-360° |
| Video & Processing | |
| Video Resolution | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate and Resolution | 30 fps 1920 x 1080, 30 fps 1280 x 720, 30 fps 720 x 576, 30 fps 640 x 360 |
| Multi-Streaming | Provides dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Excellent Wide Dynamic Range (120 dB) |
| Image Positioning | Flip, Mirror, Rotation (Corridor mode) |
| Image Upgrades | White Balance, Backlight Compensation, Brightness, Contrast Sharpness, Automatic Gain Control, Defogging |
| Privacy Occlusion | 4 Configurable Areas |
| Text Overlay | Yes |
| Analytics | |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Intrusion Detection |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | Unidirectional, Built-in Microphone |
| Audio Compression | G.711 |
| Network & Security | |
| Network Protocols and Services | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protection for user levels |
| Event Trigger | Video motion detection (4 regions), sound detection, intelligent event detection |
| Event Response | Email notification and snapshot, upload snapshot to FTP server, save video or snapshot to local storage |
| Integration | Edge Recording support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| General Specifications | |
| Operating Button | No |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 7 W (DC), 7 W (PoE) |
| Weight | 379.5 grams (0.84 lbs) |
| Dimensions (W x H x D) | 62 mm x 63 mm x 166 mm (2.5 inches x 2.5 inches x 6.5 inches) |
| Environmental Protection | Weatherproof (IP68), Explosion-proof housing (IK10) |
| Corrosion Protection | Optional For project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Installation method | Pole Mount |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% - 95% relative humidity, non-condensing |
| Surge Protection | 4KV |
| Certifications | CE Class B, FCC Class B, IP68, IK10 (metal casing), UL Listed |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Years(s) |
