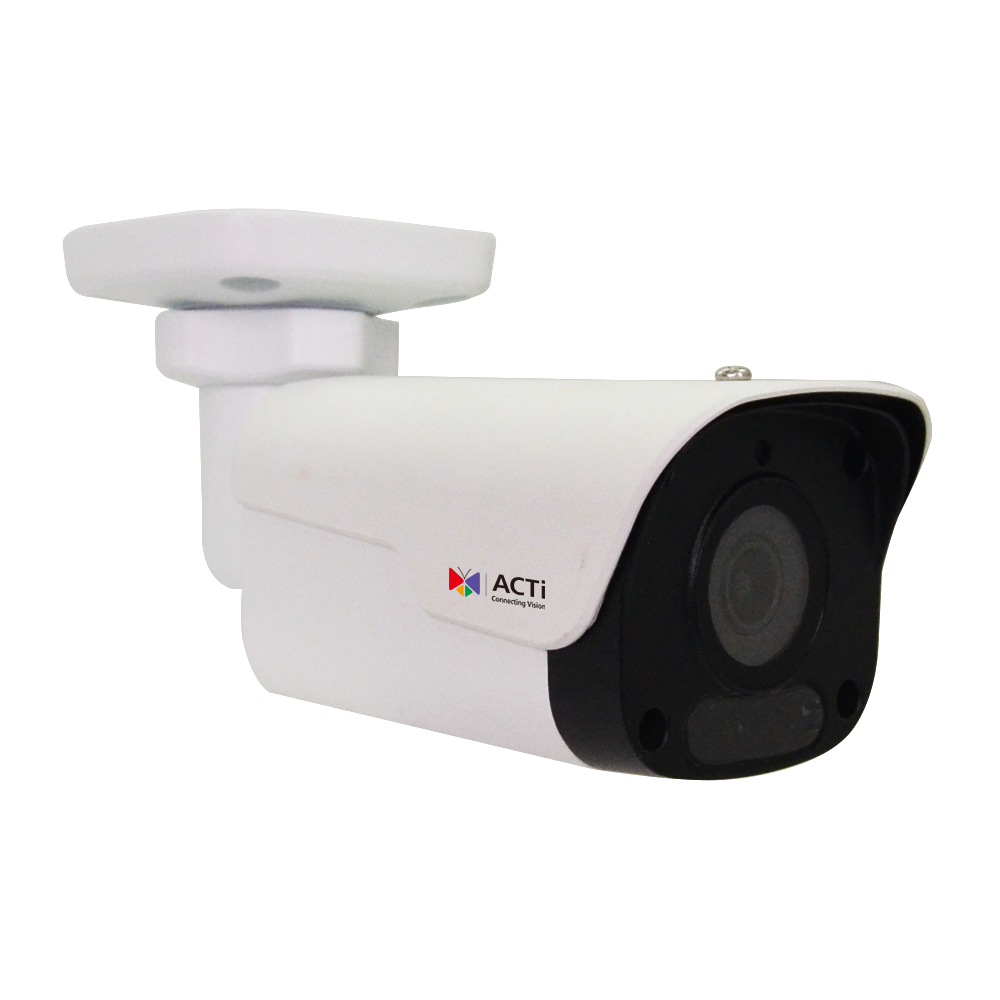

ACTi - Z38 - 2MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Part number:
Z38
Price:
2MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens, f2.8mm/F2.0 (HOV:102.1), H.265/H.264, 1080p/30fps, 2D+3D DNR, Built-in Microphone,, MicroSD, PoE/DC12V, IP68, IK10 (metal casing)
Features:
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
- Super wide angle
- Built-in Analytics
| Device | - |
| Product Type | Mini Bullet |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.01 lux at F2.0 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 1 (850 nm) |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | - |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 102.1° |
| Vertical Viewing Angle | 56° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | - |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 |
| 30 fps at 1280 x 720 | |
| 30 fps at 720 x 576 | |
| 30 fps at 704 x 288 | |
| 30 fps at 640 x 360 | |
| 30 fps at 352 x 288 | |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio | - |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | - |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | - |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration | - |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 128GB, Kingston or Sandisk only) |
| Operating Button | No |
| General | - |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 7 W (PoE) |
| Weight | 390g (0.860lb) |
| Dimensions | (W x H x D): 62mm x 63mm x 165mm (2.5" x 2.5" x 6.5") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE Class B, FCC Class B, IP68, IK10 (metal casing), UL Listed |
| Real-time Clock (RTC) | No |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Camera_Quick_Installation_Guide
0.9mb
File
Release_Notes
0.2mb
File
Z31_Z33_Z34_Hardware_Manual
1mb
