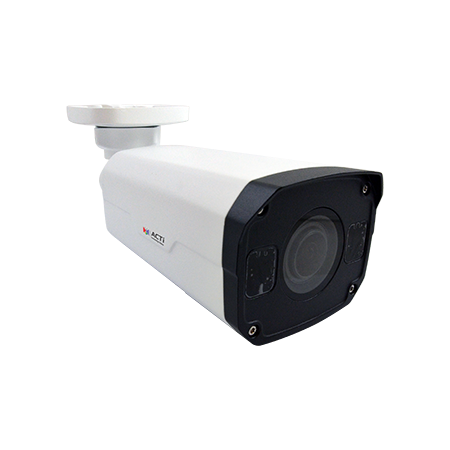

ACTi - Z41 - 2MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom Lens
Part number:
Z41
Price:
2MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm (HOV:112.7°-28.1°), Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10 (metal casing).
Features:
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12/F1.6, Auto focus (for installation)
- Superior WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Zoom Bullet |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Effective Pixels | 1920(H) X 1080(V) (2 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.01 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1080 TVL |
| S/N Ratio | 52 dB |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical zoom |
| Zoom Application | Camera Installation |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 110.3° - 30.5° |
| Vertical Viewing Angle | 58.4° - 16.8° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 576 30 fps at 704 x 288 30 fps at 640 x 360 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Intrusion Detection (Forbidden Area Detection)* |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event |
| Event Trigger | Video motion detection (4 regions), Intelligent event detection. |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11 |
| Interface |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.5 W (PoE) |
| Weight | 877g (1.933lb) |
| Dimensions | (W x H x D): 86.4mm x 75.6mm x 240.3mm (3.4" x 2.98" x 9.46") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE, FCC, EAC, IP68, NEMA 4X, IK10 (metal casing), UL Listed |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Intrusion detection is integrated with ZNR series. * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. *4 UL certification will be available in Q1 2024. |
