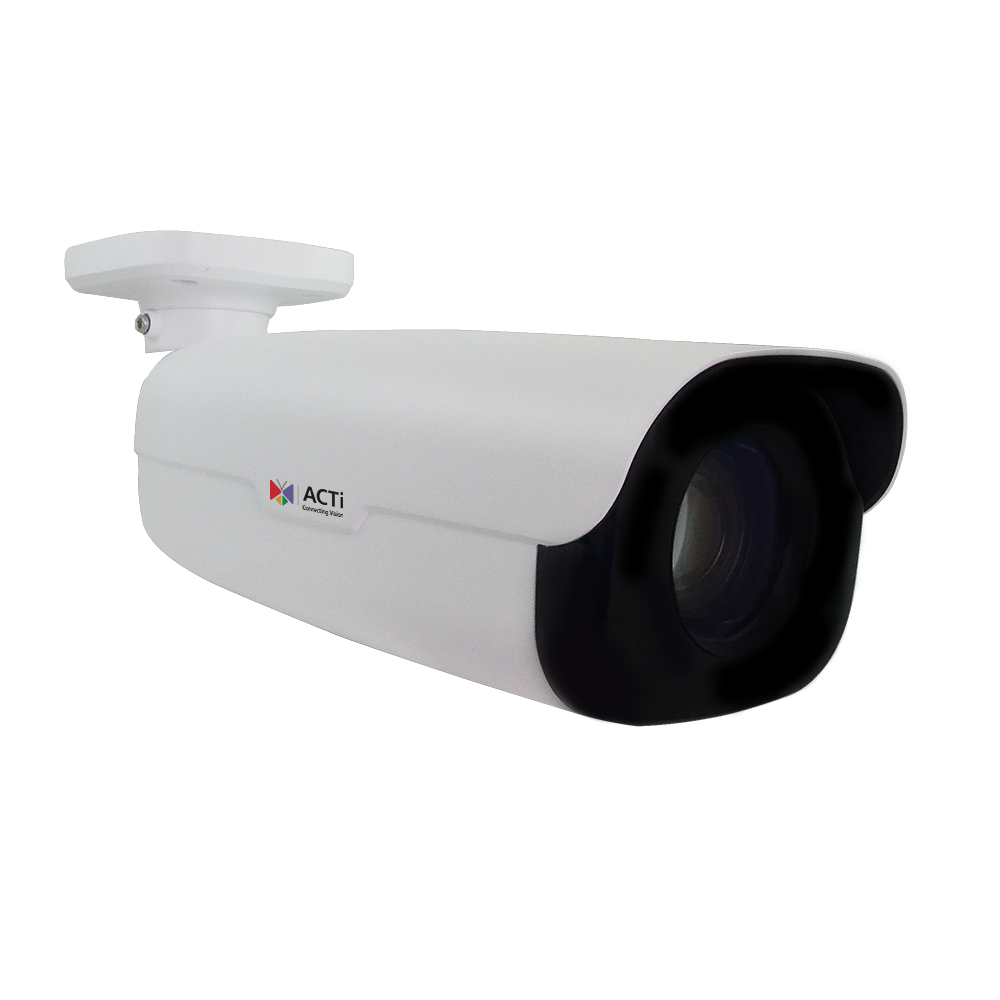

ACTI - Z411 - 4MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, 22x Zoom Lens
Part number:
Z411
Price:
4MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, 22x Zoom lens, f6.5-143mm/F1.5 HOV:61.3°-3.4°), DC iris, Auto Focus (for installation), H.265/H.264, 2D+3D DNR, Audio, MicroSD, PoE/AC24V, IP67, DI/DO, RS-485.
Features:
- 4 Megapixel
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- 22x Zoom Lens with f6.5-143mm/F1.5, DC iris, Auto focus (for installation)
- Extreme WDR
- H.265 Compression
| Device | |
| Product Type | Zoom Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Effective Pixels | 2688(H) X 1520(V) (4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.001 lux at F1.5 (AGC on); B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 250m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Zoom, f6.5-143mm |
| Aperture | F1.5 |
| Zoom Ratio | 22x optical zoom, digital zoom via NVR server |
| Zoom Application | Camera Installation |
| Iris | DC iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 61.3° - 3.4° |
| Vertical Viewing Angle | 36.3° - 1.9° |
| Video |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 720 x 576 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Counting, Tampering Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection), Object Enter Area Detection, Object Exit Area Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 u-law, G.711 A-law |
| Network |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 pigtail connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| System |
| Watchdog | Support |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface |
| Serial Port | 1 x RS-485 |
| Analog Video Output | 1 x BNC connector |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 2/1 (Terminal block) |
| Operating Button | Reset Button |
| General |
| Power Source | AC 24V, High PoE (IEEE802.3at) |
| Power Consumption | 15 W (PoE) |
| Weight | 3770g (8.31lb) |
| Dimensions | (L x W x H): 395mm x 137mm x 112mm (15.6" x 5.4" x 4.4") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Mount Type | Pole Mount |
| Heater | Yes |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Surge Protection | 6KV |
| Approvals | CE Class A, FCC Class A, IP68, IK10 (metal casing), UL Listed |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
