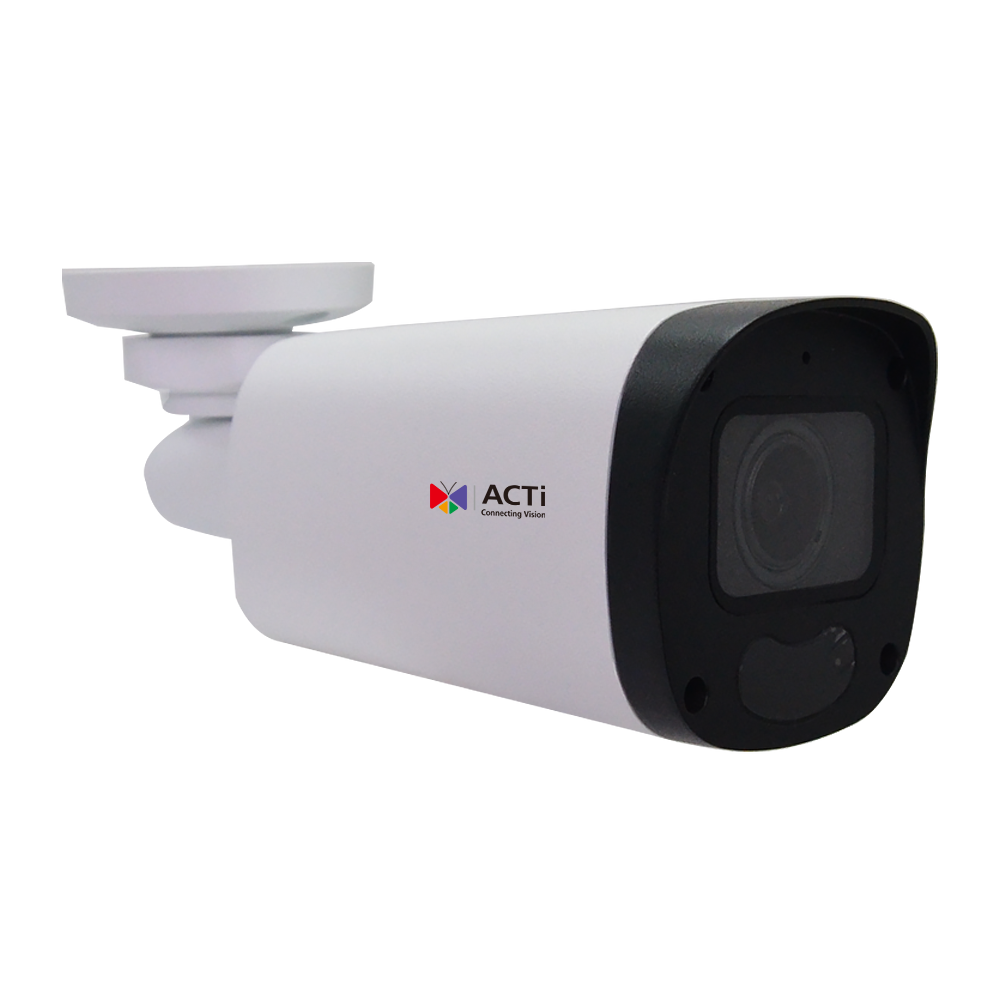

- • 5 Megapixel, 4.3x, Zoom Bullet
- • Deep Learning AI
- • IR LED 60m, Extreme WDR (130 dB)
- • Color Min. Illumination 0.003 lux
- • Built-in Microphone
- • Smart Motion Detection
- • Weatherproof (IP67)
| Product Profile | |
|---|---|
| Product Type | Zoom Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 96.4° - 32.7° |
| Vertical Viewing Angle | 51.3° - 18.6° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2880 x 1620 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Automatic gain control (AGC), Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Intrusion Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, RTMP, UPnP, QoS, SSL/TLS, SNMP, Digest Authentication |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection Sound detection Intelligent event detection |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | PoE Class 3 (IEEE802.3af), DC 12V |
| Power Consumption | 9.6W |
| Weight | 520g (1.15lb) |
| Dimensions | (W x H x D): 206mm x 73mm x 73mm (8.1" x 2.9" x 2.9") |
| Environmental Casing | Weatherproof (IP67) |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE Class B, FCC Class B, IP67, UL |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
