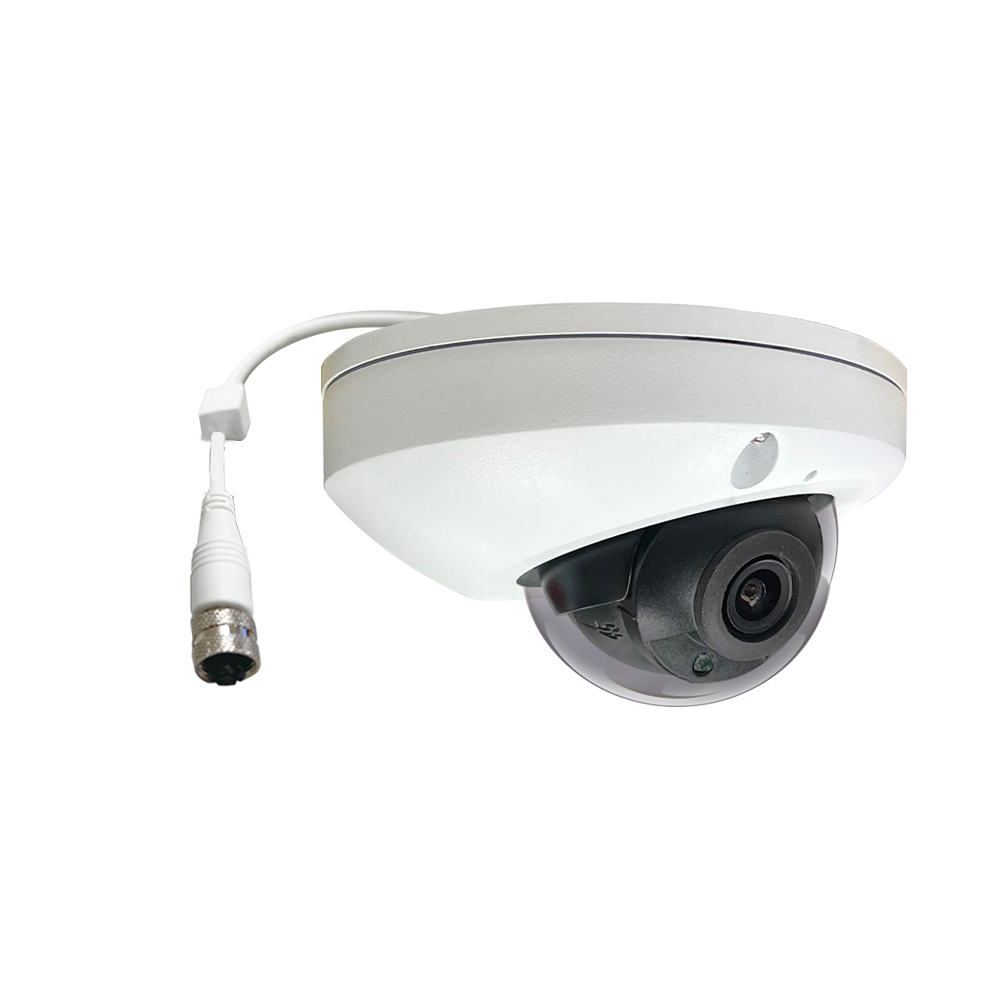

Acti - Z721 - 4MP Deep Learning AI LightGuard f2.8mm Outdoor Fixed Dome with IR LED 30m, WDR 135dB , M12
Part number:
Price:
- • 4 Megapixel, f2.8mm, Fixed Dome
- • Deep Learning AI, LightGuard
- • IR LED 30m, Extreme WDR (135 dB)
- • Color Min. Illumination 0.002 lux
- • Two-way Audio
- • Smart Motion Detection, Smart Intrusion Protection
- • Counting
- • Weatherproof (IP67), Vandal proof (IK10), Vibration proof (EN50155)
| Product Profile | |
|---|---|
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.002 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 30m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Horizontal Viewing Angle | 101.1° |
| Vertical Viewing Angle | 55.3° |
| Viewing Angle Adjustment | Pan: 0°-90°, Tilt: 0°-68°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 30 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (135 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Intrusion Protection, Smart Motion Detection (People Detection, Vehicle Detection), Face Detection, People Detection, Vehicle Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Exit Area Detection, Tampering Detection, People Counting, Crowd Detection |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Line-in, Line-out |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, SNMP, QoS, SSL/TLS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), M12 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video or snapshot to storage, Upload snapshot to FTP server |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| General | |
| Power Source | DC 12V +/- 25%, PoE (IEEE802.3af) |
| Power Consumption | 6 W (DC) |
| Dimensions | (Ø x H): 110mm x 61mm (4.3" x 2.4") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10), Vibration proof (EN50155) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class A, FCC Class A, IP67, IK10, EN50155 |
| Color | White |
| Material | Metal |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
