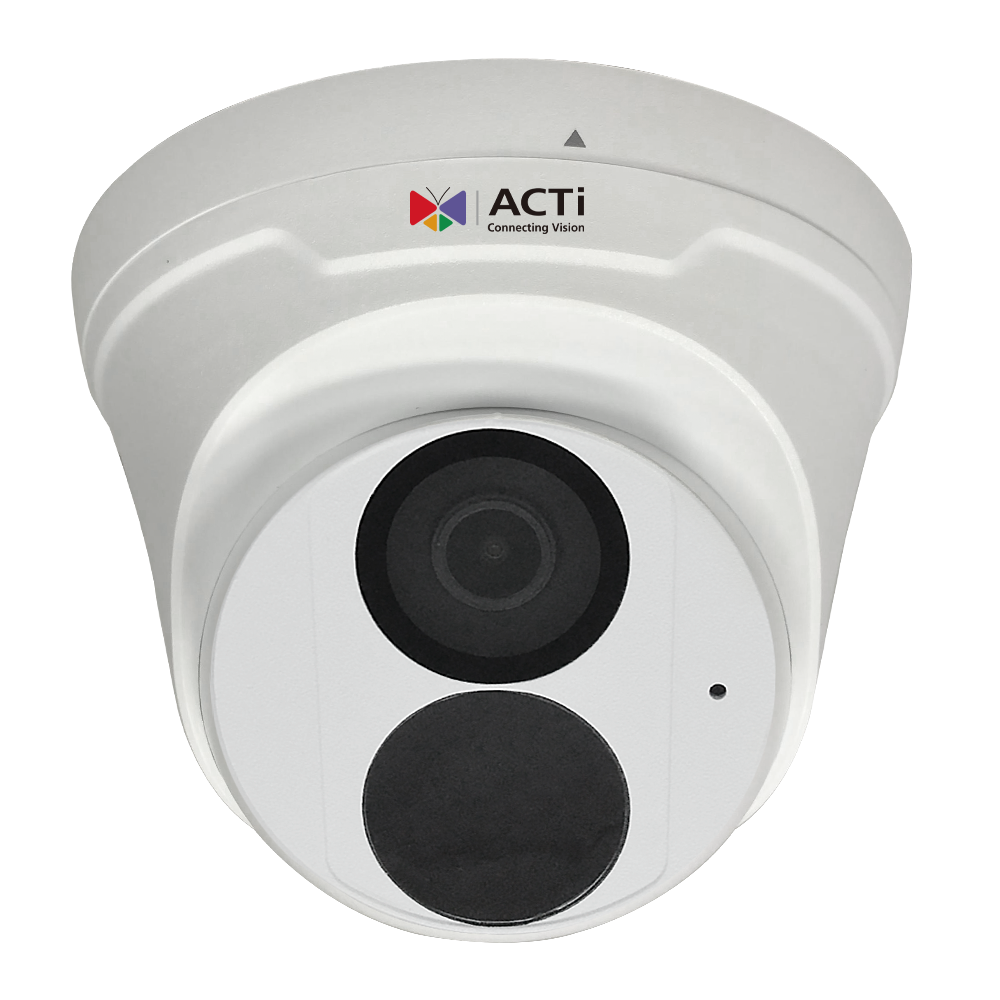

ACTi - Z79 - 4MP Outdoor Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens
Part number:
Z79
Price:
4MP Outdoor Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens, f2.8mm/F2.0 (HOV: 90°), H.265/H.264, 2D+3D DNR, Built-in Microphone, MicroSD, PoE/DC12V, IP68, IK10 (metal casing)
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
- Wide Angle
| Device | - |
| Product Type | Dome |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.01 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | - |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 90° |
| Vertical Viewing Angle | 53.1° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360° |
| Video | - |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2560 x 1440 |
| 30 fps at 2304 x 1296 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 720 x 576 | |
| 30 fps at 640 x 360 | |
| 30 fps at 704 x 288 | |
| 30 fps at 352 x 288 | |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Detection, Vehicle Detection, Tampering Detection, Object Based Motion Detection, Object Line Crossing Detection, Intrusion Detection (Forbidden Area Detection) |
| Audio | - |
| Audio Type | 1-way, Built-in Microphone |
| Integration | - |
| ONVIF Compliant | Yes, Profile S, Profile Q, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | - |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Operating Button | No |
| General | - |
| Dimensions | (Ø x H): 118mm x 96mm (4.6" x 3.8") |
| Environmental Casing | Weatherproof (IP68) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Surge Protection | 4KV |
| Approvals | CE Class A, FCC Class A, IP68, UL Listed |
| Real-time Clock (RTC) | No |
