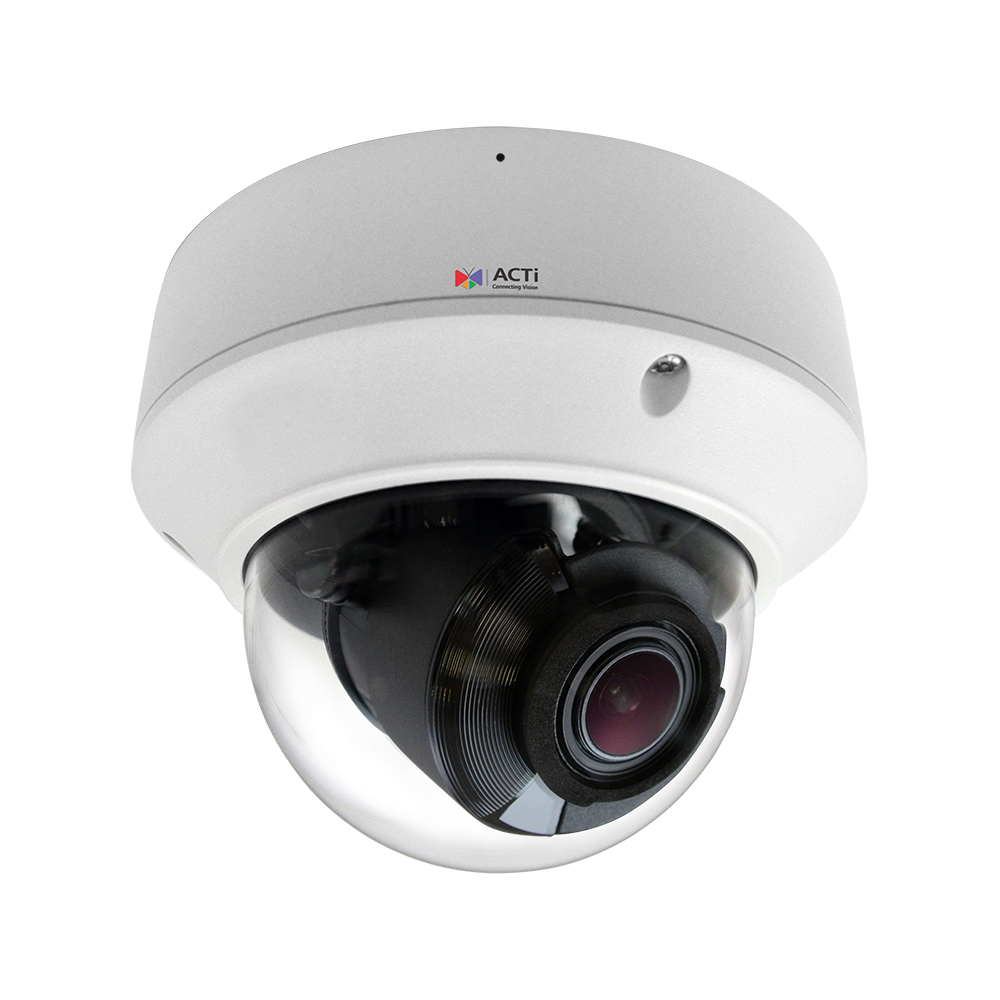

ACTi - Z810 - 8MP Zoom Outdoor Dome with D/N, Adaptive IR, Superior Wide Dynamic Range, SLLS, 4.3x Zoom Lens
Part number:
Z810
Price:
8MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm/F1.6 (HOV:99.8°-31.1°), Auto Focus (for installation), H.265/H.264, 1440p/30fps, 2D+3D DNR, Built-in Microphone, MicroSDHC, PoE/DC12V, IP67, IK10 (metal casing), DI/DO.
Features:
- 8 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Superior WDR
- H.265 Compression
- Wide Angle
- Built-in Analytics
- Event trigger, response and notification
| Device | |
| Product Type | Zoom Dome |
| Maximum Resolution | 8 MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1 /2.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 3 (850 nm) |
| IR Working Distance | 40 m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode ) |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Audio Type | 2- way, Built-in Microphone, Line-in, Line-out |
| Network |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Interface |
| Local Storage | MicroSD Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1 /1 (Cable with Terminal block ) |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Weight | 976.5 g (2.15lb ) |
| Dimensions | ( Ø x H): 148mm x 111.4mm (5.8" x 4.4" ) |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -30 °C ~ 60°C (-22°F ~ 140°F ) |
| Approvals | CE Class B, FCC Class B, IP68, IK10 (metal casing), UL Listed |
| Color | White |
| Material | Metal Plastic |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Quick Guide
0.9mb
